Product Description

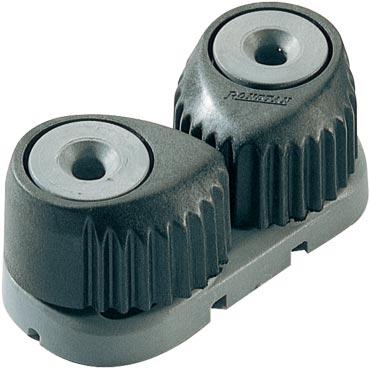

Ronstan C-Cleat Medium
Features
High strength
Superior holding power
Lightweight, ultra rigid
Corrosion resistant
Self lubricating, self-cleaning bearings
Low line entry effort, easy to release
Non rope abrasive
Rope Ø - 1/8 - 1/2 in. (3-12 mm)
Height - 1 in. (26 mm)
Width - 1 1/4 in. (31 mm)
Length - 2 5/8 in. (66 mm)
Fastener Ø - 3/16 in. (M5 mm)
Fastener Hole Centers - 1 1/2 in. (38 mm)
M.W.L. - 275 lb. (125 kg)
B. L. - 550 lb. (250 kg)
Weight - 1.8 oz. (50 g)
Product Information
Intensive development efforts have produced this range of cleats that provide unbeatable holding power, yet are designed for easy cleating and releasing of control lines in every application and load condition. Through the use of advanced composites, these cleats achieve superior performance while overcoming the limitations of metal alloys. Ronstan cam cleats are strong, light and corrosion free. The unique tooth profile and cam geometry are designed to grip without damaging the rope. A multi-coil spring recessed in the upper part of the cam generates near constant torque. This constant torque ensures secure cleating of even the smallest lines with minimal abrasion or rope wear and low line entry and exit efforts. The lightweight ultra rigid carbon fiber composite cams of the c-cleat are corrosion free, suffer virtually no tooth wear and are non rope abrasive.
Applications
Range of cleats for all requirements including control lines, jib sheet and mainsheet cleating
Materials
Carbon fiber composite cams
Long strand glass fiber reinforced polymer base
PTFE impregnated Acetal slotted bearing
Stainless steel multi-coil spring
