Product Description

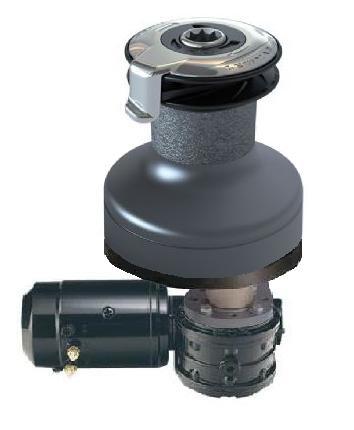

Lewmar 65EST EVO Electric Winch Aluminum Grey
Specifications
Weight (Includes the weight of Motor Gearbox + Control Box) (lb) - 39.9
Mounting - 5x M10 (3/8) in c'sk head screws on 184mm (7 1/4 in) PCD
Dimensions
H (in) - 10 3/4
L (in) - 5 9/16
M (in) - 11 7/16
P (in) - 2 7/16
T (in) - 2 5/16
U (in) - 6 1/4
V (in) - 3 1/8
B (in) - 9 1/4
Line Size (in) - 5/16-1/2
Mounting Instructions:
When installing a winch, Lewmar recommends the winch to be mounted on a level surface and that the rope enters the drum at an angle of 5 to 10 to the base axis of the winch. This angle can be achieved by using a base wedge when mounting the winch. Please note that not all mounting holes are symmetrical on all models.
