Product Description

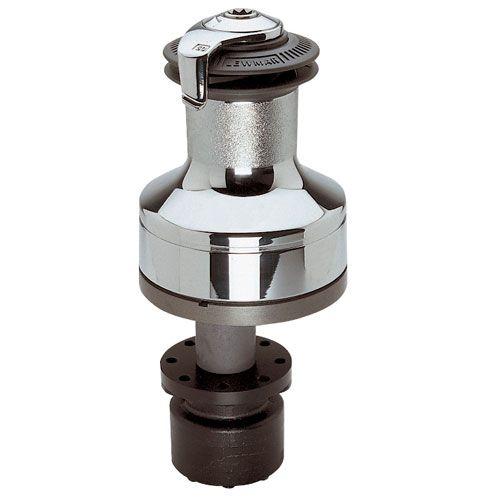

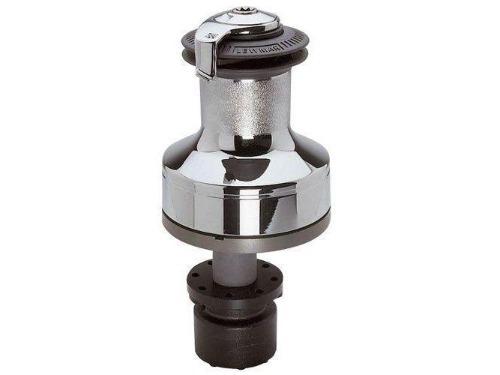

Lewmar 58HST Two Plus One Speed Hydraulic Winch Alloy
Specifications
Weight (includes the weight of Motor Gearbox + Control box) (lb) - 50.1
Mounting - 5x 3/8 in c'sk head screws on 7 1/4 in PCD
Dimensions
B (in) - 8 1/8
D (in) - 4 1/8
H (in) - 10 11/16
L (in) - 5 3/8
M (in) - 5 1/8
N (in) - 1 15/16
R (in) - 8 1/8
T (in) - 2 9/16
Line Size (mm) - 5/16-5/8
Mounting Instructions
Lewmar recommend that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch.
