Lewmar Size 10 Flat Base Ocean Hatch

Item #

39610050

Usually ships within 1-3 days

Product Description

Lewmar Size 10 Flat Base Ocean Hatch

All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

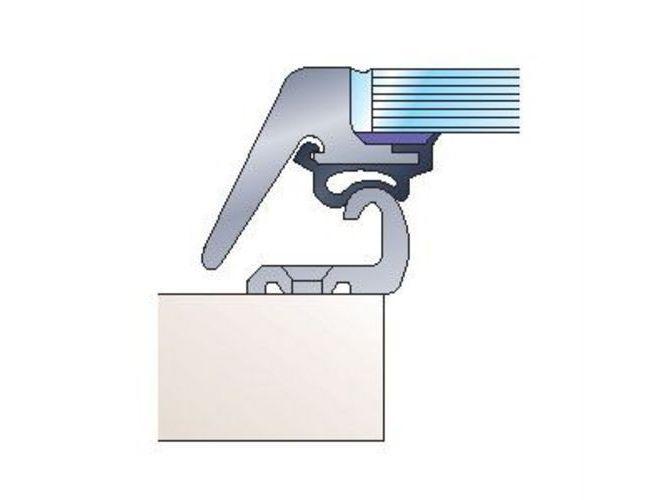

  • Lower Frame (in) - Flat Base

  • Acrylic Color - Smoke Grey

  • Hatch Weight (lb) - 5.77

  • Acrylic Window Thickness (in) - 3/8

    Dimensions

  • Length X (in) - 12 3/4

  • Width Y (in) - 12 3/4

  • Height Z (in) - 1 9/16

  • Radii R (in) - 2 15/16

  • Hinge Length HX (in) - 3/16

  • Hinge Width HY (in) - 5 7/16

  • Cut-Out Length Flat X1 (in) - 10 1/16

  • Cut-Out Width Flat Y1 (in) - 10 1/16

  • Cut-Out Radii Flat R1 (in) - 1 9/16
