Product Description

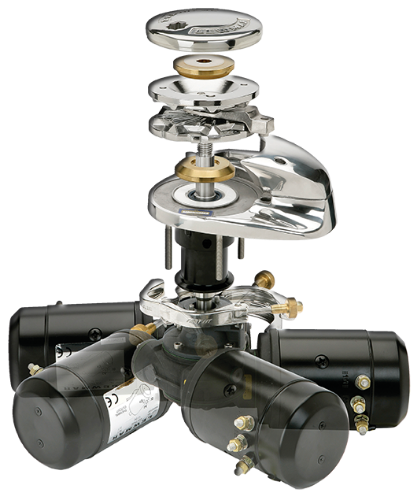

Lewmar V1 Gypsy Only 12v Windlass (002)
Rope-chain gypsy
Manual chain release (Free Fall)
Cone clutch for smooth, easy control
Optional manual override motor gearbox
W.A.R.P Drum
Fall safe anchor lock
Robust/reliable worm gearbox
FastFit equipped for quicker installation and less hassle
Emergency recovery kit available
IP68 kits available
For Boats up to 12m (40ft)
Dimensions
A - 1 11/16" (42mm)
C - 6 5/16" (161mm)
E - 6 3/16" (157mm)
F - 2 3/4" (70mm)
G - 9 1/8" (237mm)
H - 3 5/8" (92mm)
I - 4 1/4" (114mm)
J - 12 3/16" (310mm)
K - 6 13/16" (173mm)
Specifications
Model - V1
Motor Power Watts - 700W
Normal Current Draw - 80A
Circuit Breaker - 90A
Max Pull - 700 lbs. (454 kg.)
Max Line Speed - 65ft/min (19m/min)
Working Load - 250 lbs. (113 kg)
Normal Line Speed - 43ft. (13m)
Weight Gypsy Only - 36 lbs. (16.5 kg)
Gypsy Specifications
Gypsy Number - 002
Chain Description - 10mm DIN 766, Campbell 3/8" S4
Rope Description - 1/2"-5/8" (12-16mm) 3-Strand & 8-plait (5/8" Only)
Cable Sizes
Voltage - 12v
Length of Cable Run - 0'-23'(0-7m) 23'-50'(7-15m) 6 AWG(10mm²) 4 AWG(25mm²)
Switch Wiring - 16 AWG (1.5mm²)
Current Rating for Switch Wire - 5A
