Product Description
Peguet 7mm (9/32") Zicral Delta Maillon Rapide Quick Link
Delta shape: developed after the ever-increasing development of webbing-fitted systems; perfect for webbing uphold onto its lower flat part.

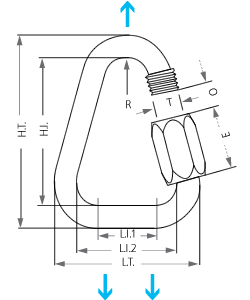

Specifications:
Diameter: 7MM or 9/32"
LT: 51mm
LI1: 21mm
LI2: 37mm
HT: 63mm
HI: 49mm
O: 8.5mm
E: 21.5mm
R: 8mm
T: 10mm
Weight: 21g (0.0463 lbs)
Working Load: 175kg (385 lbs)
Breaking Load: 875kg (1929 lbs)
Material:
Zicral
Rod: 7075
Nut: 7075
Aluminum alloy, zinc, magnesium 7075 (AFNOR - USA-GB)
Good resistance to corrosion
Lightness (density 2.80)
Anti-magnetic
Good mechanical resistance
Tightening Torque:
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Recommendation:
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connnect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
