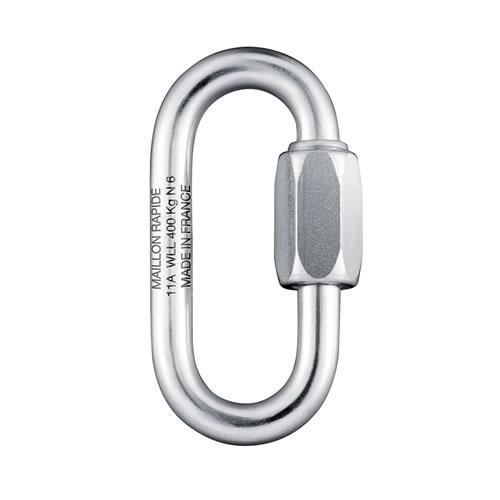

Peguet 10mm (7/16") Zicral PPE Standard Maillon Rapide Quick Link

Peguet 10mm (7/16") Zicral PPE Standard Maillon Rapide Quick Link

This is a PPE Certified Maillon Rapide Quick Link

The original oval shape was developed on the principle of a chain link fitted with manual nut opening. This shape reflects the spirit of Maillon Rapide quick links connectors.

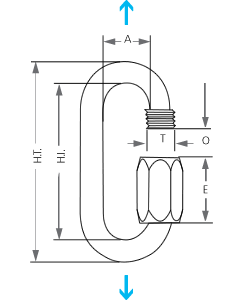

Specifications:

Diameter: 10MM or 7/16"

HT: 89mm

HI: 69mm

A: 20.5mm

O: 12mm

E: 29mm

T: 13mm

Weight: 49g (0.1080 lbs)

Breaking Load: 25kN (5625 lbs)

Material:

Zicral

Rod: 7075

Nut: 7075

7075 Zinc-aluminium alloy-magnesium (AFNOR-USA-GB)

Anti-corrosion

Negligible weight (density: 2,80)

Totally non-magnetic

Fair mechanical strength (25h bar)

Tightening Torque:

ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0

Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00

Recommendation:

Marking according to Standards EN 362 & EN 12275 – P.P.E. – Personal Protective Equipment

Maillon Rapide quick links used as a connector on P.P.E. (personal protective equipment) against falls from heights, mountaineering and rock climbing, are distinguished by a specific marking in relation with following European standards:

EN 362 standard - industrial P.P.E.: fall arrest systems, work restraint, work positioning, rope access.

EN 12275 standard - mountaineering P.P.E.: rock climbing, climbing walls, caving, canyoning.

Breaking strength in kN is identified on Péguet Maillon Rapide quick links meant for application in P.P.E. Breaking strength must not be under 25 kN.

When used in P.P.E., the breaking strength engraved on the Maillon Rapide quick links clearly identifies the maximum load.

Individual ID marking: a specific laser marking is added to the usual marking, providing users with an interesting option in terms of product check, while no data collection shall be made by Péguet. This option is available exclusively on P.P.E. certified Maillon Rapide quick links – EN 362 / EN 12275 standards.

The product range for P.P.E. in mountaineering also carries the U.I.A.A. label (International Mountaineering and Climbing Federation).

According to legislation, a user instruction is required with each EN 362 & EN 12275-certified Maillon Rapide quick link, sold or used as a connector when fitted on P.P.E.

Keep to the working load limit WLL engraved in kg.

Visual check of complete nut screwing compulsory; no thread must be showing.

Maillon Rapide quick links are only to be loaded along the major axis.

Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.

When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.

Maillon Rapide should always be fitted with parts made of same material.

When connected with chain, Maillon Rapide quick links should be of the same diameter.

Never connnect any Maillon Rapide quick links onto a lifting chain.

Stainless steel Maillon Rapide quick links may be used in salt water.

P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
