Product Description

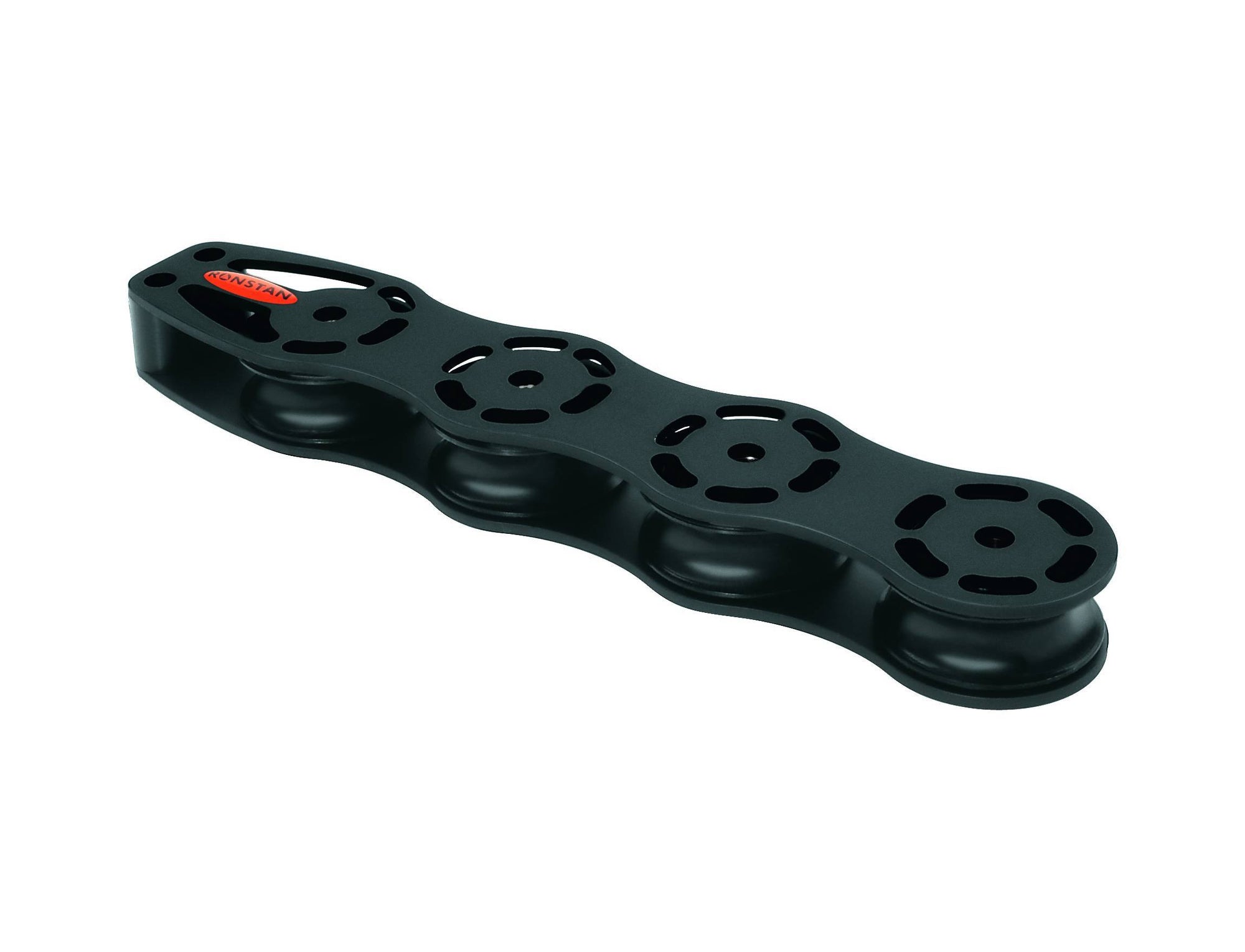

Ronstan Series 40 All Purpose 4 Sheave Organizer
Features
Lightweight design with cheek cut outs for easy bearing maintenance
Through hub mounting for maximum strength
All-purpose bearing system provides maximum static load capacity
Sheave Ø - 1 5/8 in.
Max. Rope Ø - 1/2 in.
Max. Cable Ø - in
Fastener Ø - 1/4 in.
M.W.L. - 1100 lb.
B. L. - 2200 lb.
Weight - 6.5 oz.
Product Information
Deck organizers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organizers have black chromed cheeks, flared at rope entry and exit points to minimize chafing. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.
Applications
Line deflection on larger yachts (depending on load and angle of deflection)
Halyard and control line deflection on boats to 11m (36ft)
Materials
Alloy upper and lower cheek plates
U.V. stabilized Acetal sheaves
Grade 316 stainless steel hubs
