Product Description

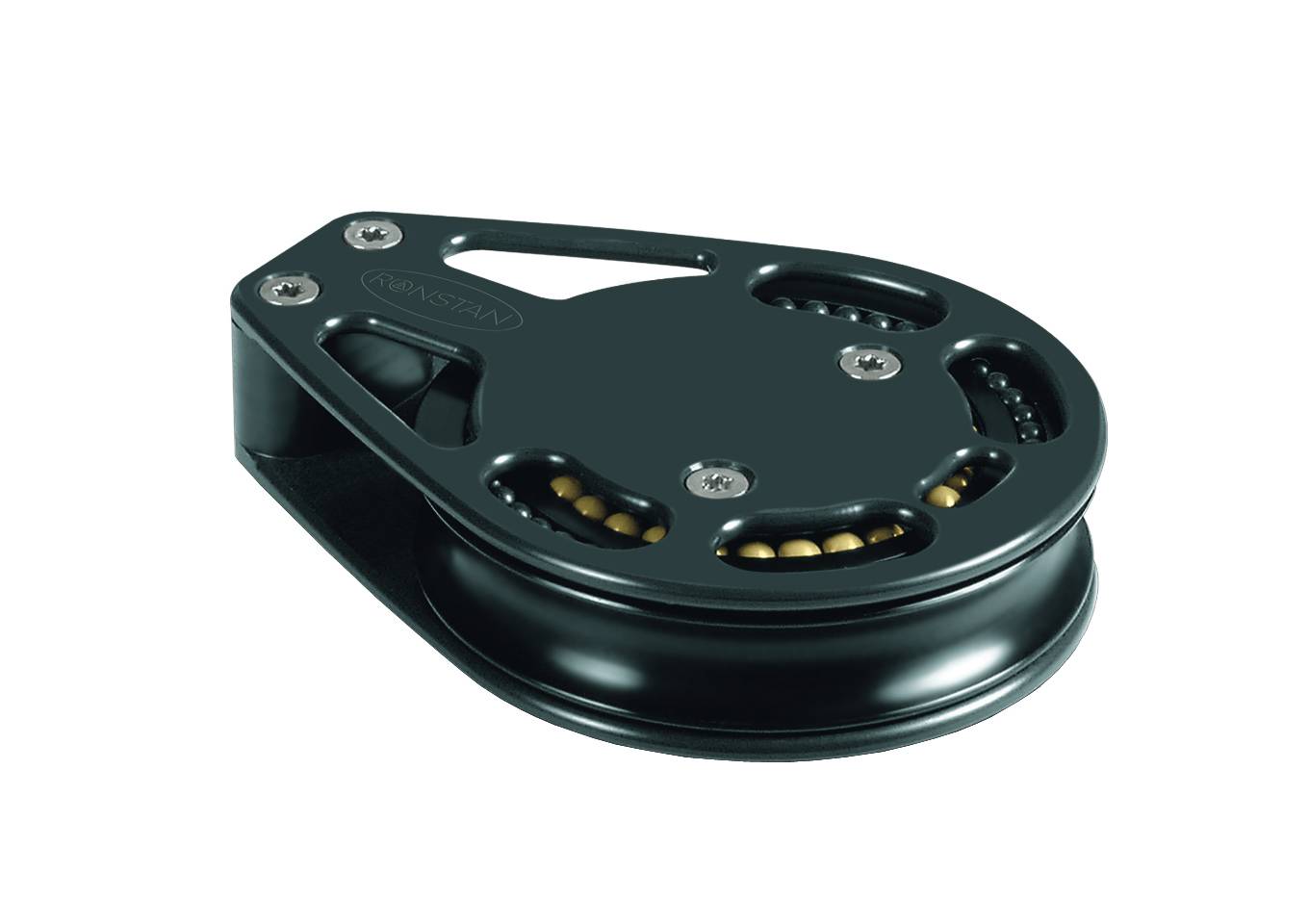

Ronstan Orbit Series 100 Single Foot Block
Features
The highest strength-to-weight ratio
Minimal friction loss, especially when working at high loads
Totally reliable and trouble free performance
Simplicity of design and construction to facilitate maintenance and servicing
Elegant, functional styling and finish.
Stackable to create double version
Removable cover plate
Sheave Ø - 4 in.
Max. Rope Ø - 9/16 in.
Max. Wire Ø - in.
Pin Ø - in.
Max. Working Load - 7720 lb
B. L. - 15650 lb
Weight - 15.8 oz
Product Information
Orbit blocks™ are a no-compromise product range developed to meet the demands and expectation of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive Acetal or Torlon® ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.
Head posts of swivel blocks can be locked at 0 or 90 degrees.
Applications
Primary mainsheet, halyard and spinnaker systems on boats to 15m (50ft)
Secondary mainsheet, vang blocks on boats to 18m (60ft)
Backstay systems on boats to 14m (46ft)
General control line and lead block applications on larger yachts
Materials
Fully machined Alloy cheek plates
Alloy sheaves with captive ball races
Torlon® needle rollers
Carbon black Acetal ball bearings
Forged grade 17-4PH stainless steel shackles
Grade 316 stainless steel head post
