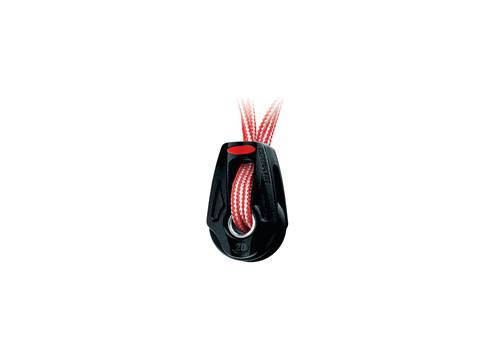

Ronstan Series 20 BB Orbit Block,Single, Lashing,Becket- High Load

Item #

RF25109HL

Usually ships within 1-3 days

Product Description

Ronstan Series 20 BB Orbit Block,Single, Lashing,Becket- High Load

Product Information

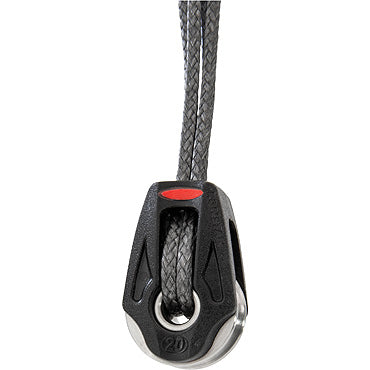

* Block must be lashed through hub. The supplied lashing line must have three passes through head and hub to achieve rated load. MWL & BL are dependent on the strength of lashing. Knots, splices, stitching will generally have a lower BL than the line itself.

Features
  • Suits up to 4mm (5/32”) lashing
  • Supplied with 750mm (30”) x 2mm (3/32”) diameter
  • Dyneema® single braid lashing line
Specifications
  • Sheave Ø - 3/4 in.
  • Max. Rope Ø - 1/4 in.
  • M.W.L. - 660 lb.
  • B.L. - 1980 lb.
  • Weight - 0.5 oz.

Applications

  • Leech / control lines
  • Cunninghams
  • Ideal for higher load applications

Materials

  • Sheave: high compression strength carbon black Acetal
  • Frame:/Cheeks: Toughened, glass fibre reinforced Nylon
  • Load straps and ball bearings: Grade 316 stainless steel
  • HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 316
  • Frame/Cheeks: Toughened, glass fibre
