Product Description

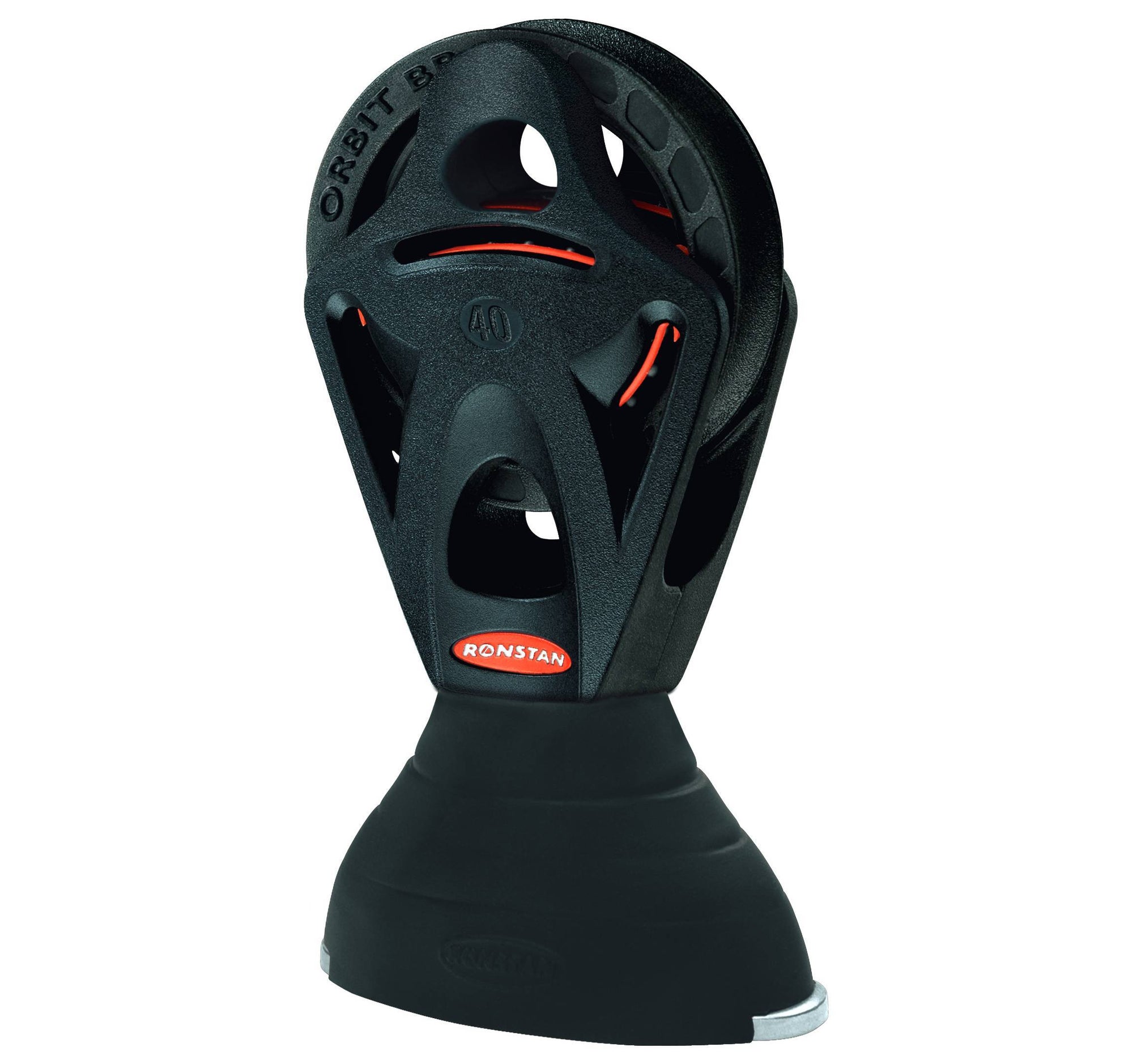

Ronstan Orbit Series 40 Single Stand-Up Block w/ Swivel Head
Features
Ultra Lightweight
Low friction 2-stage Orbital ball bearing system
Highest working load in its class
Low profile and compact
High performance cleating
Swivel shackle head for unlimited block rotation -grade 316 stainless steel.
Stainless steel shackle head for ultimate durability with harsh fixing points.
Sheave - 1 9/16 in.
Max. Rope - 5/16 in.
Max. Cable - in
Pin - in.
M.W.L. - 715 lb.
B. L. - 1430 lb.
Weight - 2.0 oz.
Product Information
Lightweight
Kilogram for kilogram of working load, BB and RT Orbit Blocks are the world's lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.
Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.
Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.
Highest working load in its class
The orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range. The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.
Applications
Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft)
Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft)
Halyard, vang and backstay applications on boats to 8m (26ft)
Control line applications on larger yachts
Materials
Ball Bearings - High compression strength carbon black Acetal.
Stage 2 Bearing - Glass fiber reinforced, MoS2 impregnated Nylon
Frame/Cheeks - Toughened, glass fiber reinforced Nylon
Sheave - Carbon fiber reinforced, PTFE impregnated Nylon
