Product Description

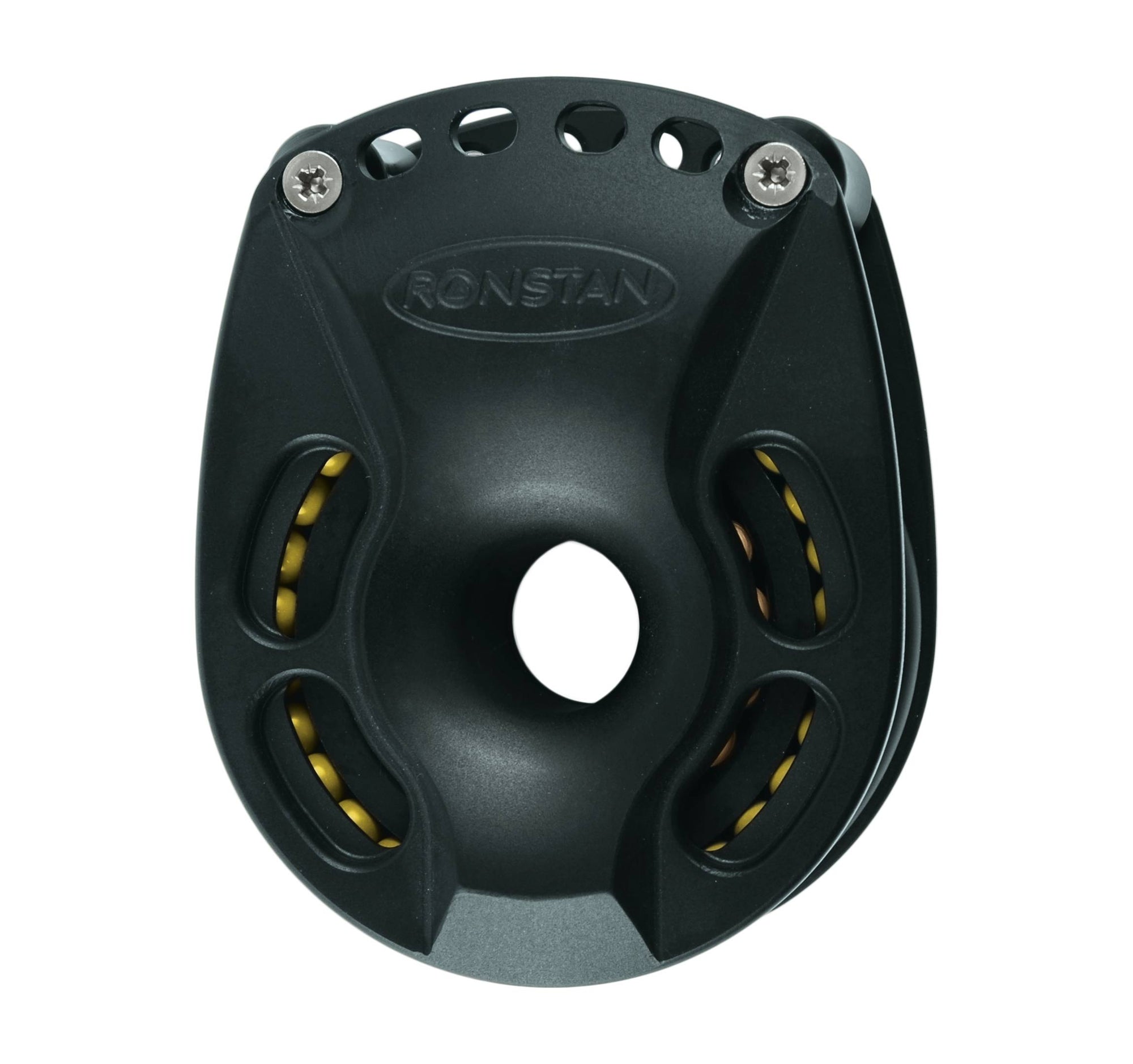

Ronstan Series 60 Lashing Orbit Block
Features
The highest strength-to-weight ratio.
Minimal friction loss, especially when working at high loads.
Totally reliable and trouble free performance.
Simplicity of design and construction to facilitate maintenance and servicing.
Elegant, functional styling and finish.
Sheave Ø - 2 3/8 in.
Max. Rope Ø - 1/2 in.
Max. Cable Ø- in
Pin Ø - in.
M.W.L. - 5291 lb.
B. L. - 13228 lb.
Weight- 5.70 oz.
Product Information
Orbit Blocks™ are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.
Due to their direct attachment capability Lashing blocks are extremely versatile. They can accept multiple lashing lines at the head and the hollow hub can be utilised as a becket take-off. Unlike others on the market, these hollow hubs feature large radii to minimise rope fatigue.
Materials
Fully machine Alloy cheek plates

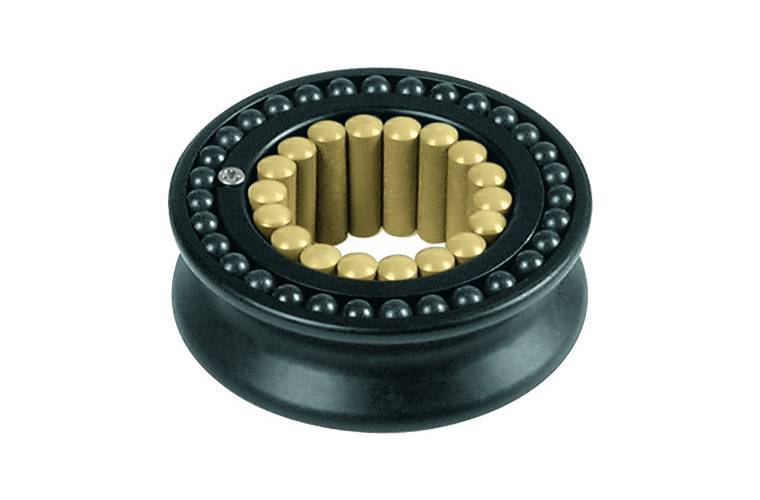

Alloy sheaves with captive ball races
Torlon needle rollers
Acetal guide rollers
Carbon black ACetal ball bearings - series 80 and 60
