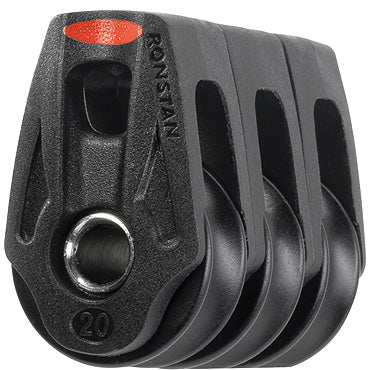

Ronstan Series 20 Triple Lashing Block

Item #

RF25309

Usually ships within 1-3 days

Product Description

Ronstan Series 20 Triple Lashing Block

Features

  • Lightweight and strong

  • Suits up to 4mm (5/32”) lashing

  • 2-Stage ball bearing system for efficient and effortless trimming

    • Hollow hub for becket take-off

    • Sheave Ø - 3/4 in. (20mm)

      Max. Rope Ø - 1/4 in. (6mm)

      Max. Cable Ø - in (mm)

      Pin Ø - in. (mm)

      M.W.L. - 660 lb. (300 kg)

      B. L. - 1760 lb. (800 kg)

      Weight - 0.7 oz. (21 g)

      Product Information

      Lashing Line must pass through the hub with a tight splice in the head or cross over before lashing to a fixing point.

      Applications

    • Control lines

    • Leech lines & Cunninghams

    • Cascading vangs

    • Kite bridles

    • Perfect for multi purchase vang systems on performance dinghies such as the Moth, 49er and ILCA®

  • Materials

  • BB Sheave: High compression strength acetal

  • HHL sheave and bearing race: Grade 2205 stainless steel, ball bearings: Grade 304 stainless steel

  • Frame/cheeks: Toughened nylon

  • Load straps (RF21107): Grade 316 stainless steel

  • Frame/cheeks (RF21107): Toughened, glass fibre reinforced nylon
