Product Description

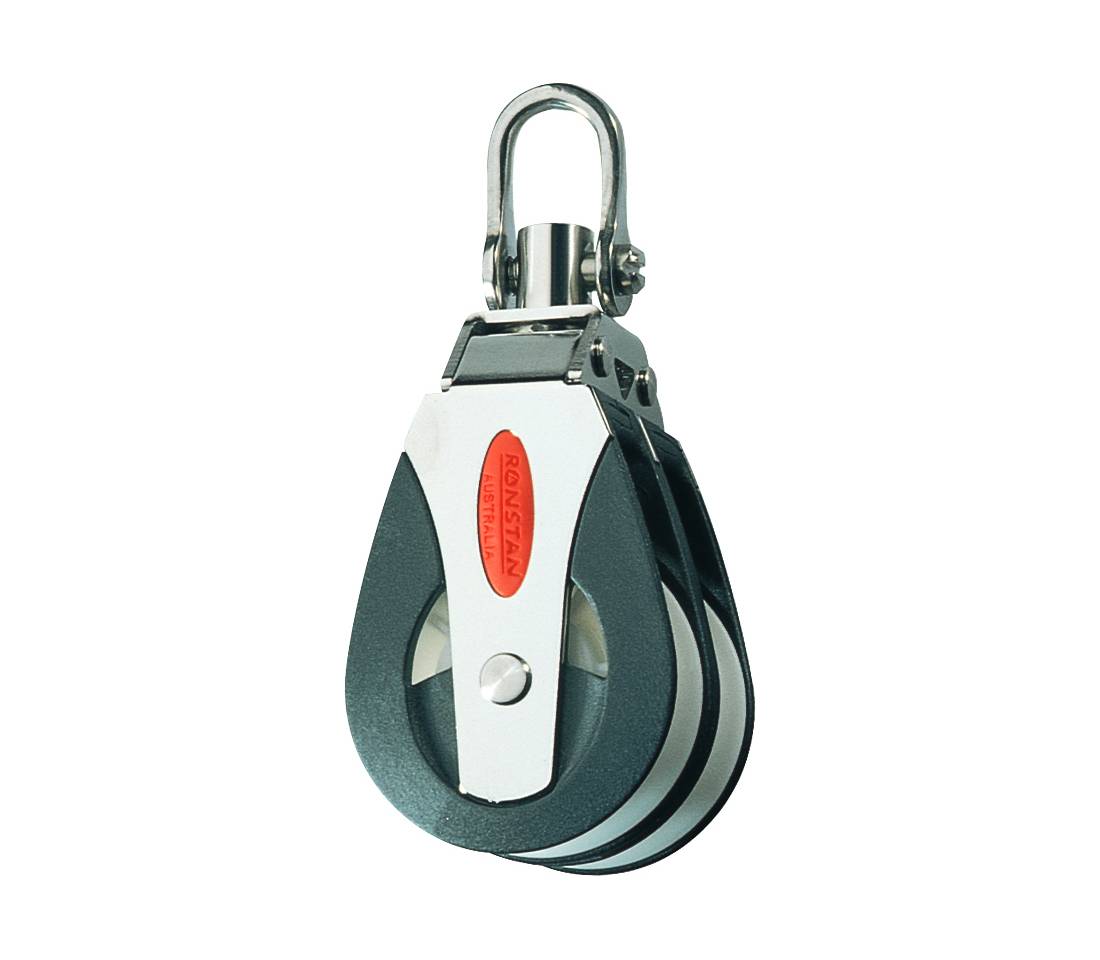

Ronstan Series 50 All Purpose Double Universal Head Block
Features
Exceptionally high working loads
Low maintenance, long service life
Self-lubricating sheave
Slotted pin shackle eliminates fouled lines
Lockable swiveling head post
Sheave Ø - 2 in.
Max. Rope Ø - 1/2 in.
Max. Cable Ø - in
Pin Ø - 1/4 in.
M.W.L. - 2200 lb.
B. L. - 4410 lb.
Weight - 9.0 oz.
Product Information
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads.
For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
Materials
U.V. stabilized Acetal sheaves
Impact and U.V. resistant, fiber reinforced Nylon cheeks
Grade 316 stainless steel bearing race
Grade 316 stainless steel load strap
Impact and UV resistant, fiber reinforced Nylon cheeks
