Product Description

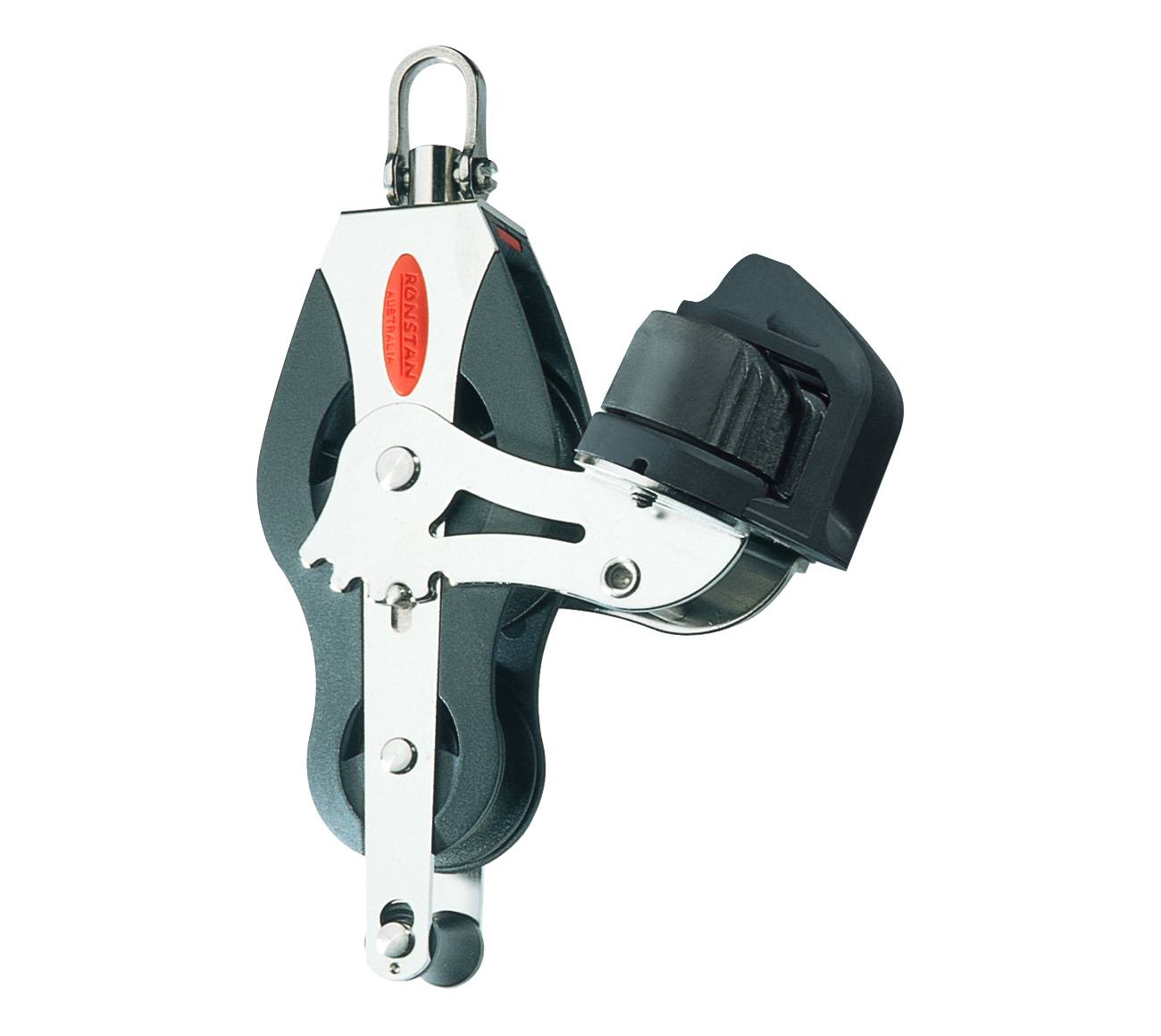

Ronstan Series 50 BB Fiddle Block w/ Becket & Cam Cleat
Features:
Low friction, 2-stage ball bearing system
High static and dynamic load capacity
Lightweight
Cheek cut-outs for easy bearing maintenance
Captive Lock™ universal head
Slotted pin shackle eliminates fouled lines
Snap fit removable becket pin
Multi-position cleat arm
Specifications:
Sheave Ø - 2 1/8 + 1 5/16 in. (54 + 34mm)
Max. Rope Ø - 3/8 in. (10mm)
Max. Cable Ø - in (mm)
Pin Ø - 3/16 in. (5mm)
M.W.L. - 1100 lb. (500 kg)
B. L. - 3310 lb. (1500 kg)
Weight - 11.8 oz. (334 g)
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting and is i
Applications:
Mainsheet
Spinnaker sheets
Halyards and other primary applications on boats up to 10m (33ft)
Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs
On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls.
Materials:
Acetal ball bearings
UV stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fiber reinforced Nylon cheeks
