Product Description

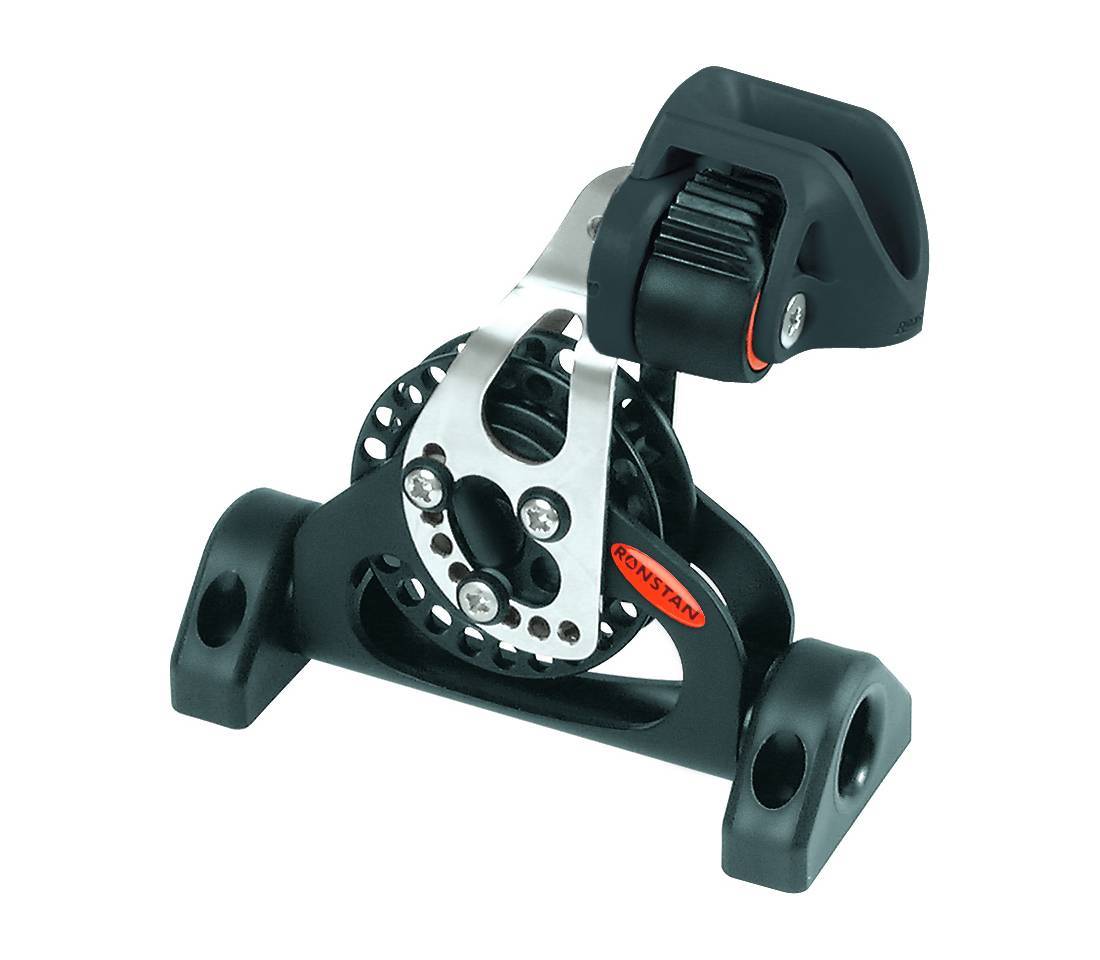

Ronstan Series 60 Pivoting Low Lead Ratchet Block w/ Cleat
Features
Sheave Ø - 2 3/8 in.
Max. Rope Ø - 3/8 in.
Max. Cable Ø - in
Fastener Ø - 3/16 in.
M.W.L. - 550 lb.
B. L. - 3020 lb.
Weight - 10.1 oz.
Product Information
Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.
Maintains alignment with a variable line entry-angle. The line passes through the center of the pivot support, remaining as close to the deck as possible.
The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a
Materials
U.V. stabilized Acetal sheave
Black carbon Acetal ball bearings
Alloy cheeks
Torlon® ratchet pawl
