Product Description

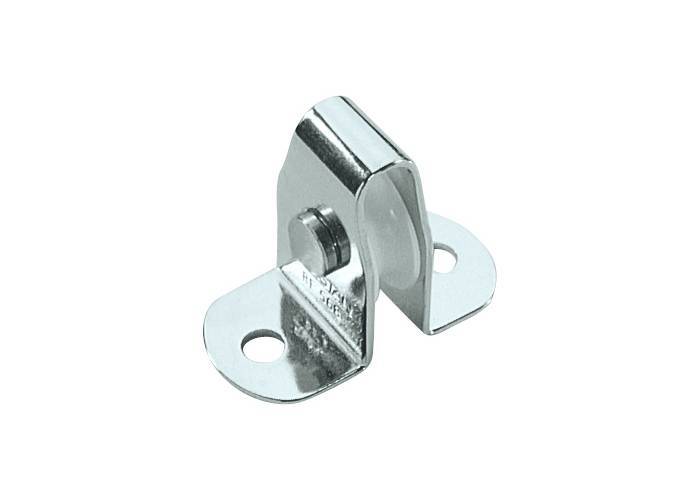

Ronstan Single Upright Lead Block w/ Removable Sheave
Features
Removable sheave
The external tabs can be formed to fit the spar profile before fastening
Sheave Ø - 3/4 in.
Max. Rope Ø - 3/16 in.
Max. Cable Ø - in
Fastener Ø - 3/16 in.
M.W.L. - 550 lb.
B. L. - 1100 lb.
Weight - 0.7 oz.
Product Information
Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.
When mounted in an inverted position, are frequently used as upright leads.
Applications
Typically used in dinghy spars for control lines such as outhauls.
Materials
U.V. stabilized Acetal sheave
Grade 316 stainless steel load housing
