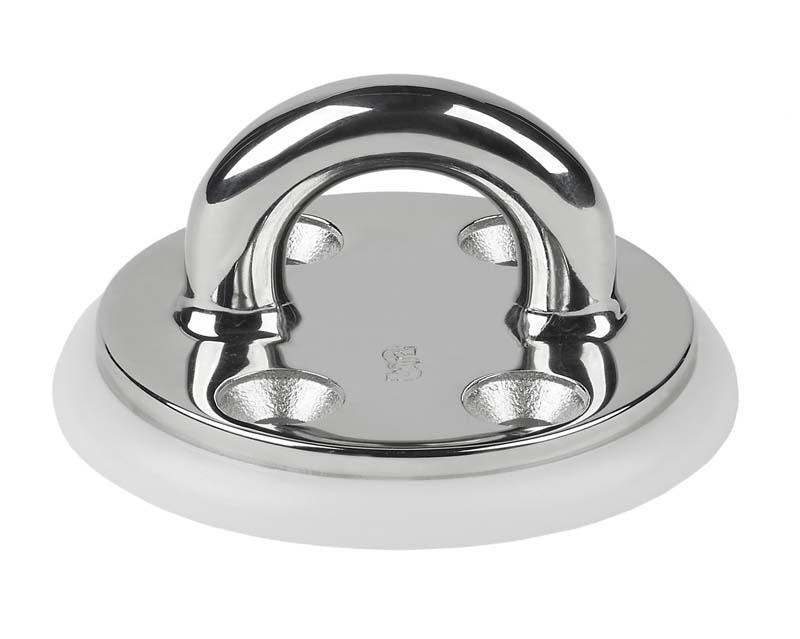

Schaefer 2.5 Cast Padeye

Schaefer 2.5 Cast Padeye

These heavy-duty pad eyes are investment cast from high quality type 316 Stainless Steel for a high degree of accuracy and strength. The first step in this process involves making a wax part from a master or permanent die. The wax part is then used in a temporary or series of temporary molds. The actual parts are then cast from the temporary molds without any wear to the permanent die to ensure accurate casting each time. Backing Plates are from 304 Stainless Steel and are sold separately.

Specifications

SWL: 4000 lbs. (1800 kg.)

Length: 2 1/2" (64mm)

Width: 2 1/2" (64mm)

Eye Width: 1" (25mm)

Eye Height: 13/16" (21mm)

Eye Stock: 3/8" (9mm)

Fasteners: (4) 1/4" (6mm) FH

C/C A: 1" (25mm)

C/C B: 1 1/2" (38 mm)

Backing Plate: 97-53

Weight: 4 oz. (113 g)
