Product Description

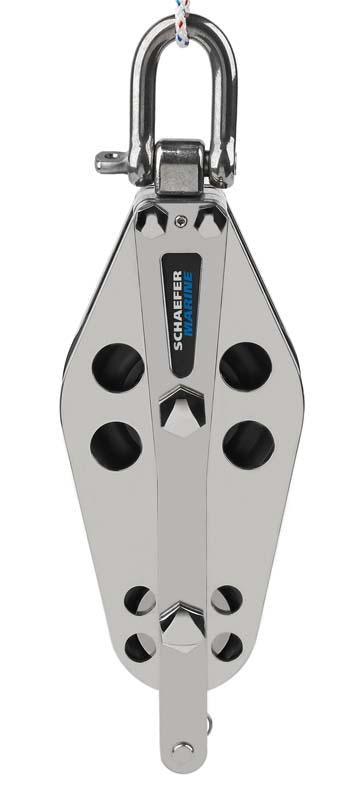

Schaefer S.S. Fiddle Block w/ Becket
Specifications:
12 Series Fiddle Block with Becket and UC Ball bearing sheaves.
Powerful aluminum sheaves run on Nomex(tm)/Teflon(tm) composite bearing and twin ball bearing races for maximum thrust load capacity.

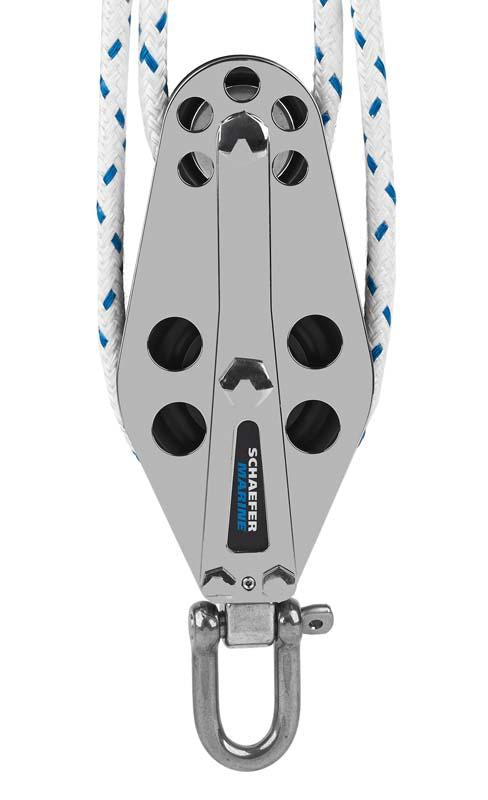

Works with 120-45-UC for a powerful 4:1 system.
Stainless Steel cheeks are reinforced for high loads.
Swivel head "D" Shackle may be locked in place.
Bolted construction allows for disassembly and proper maintenance.
Removable becket allows for use of pre-spliced line.
Sheave Dia.: 4 in. (102 mm)
Thickness: 1 1/2 in. (38 mm)
Width: 4 in. (102 mm)
Length: 11 9/32 in.(286 mm)
SWL: 5000 lbs (2270 kg)
Weight: 4 lbs. 1 oz. (1.84 kg)
Max Line: 3/4 in. (19 mm)
