Product Description

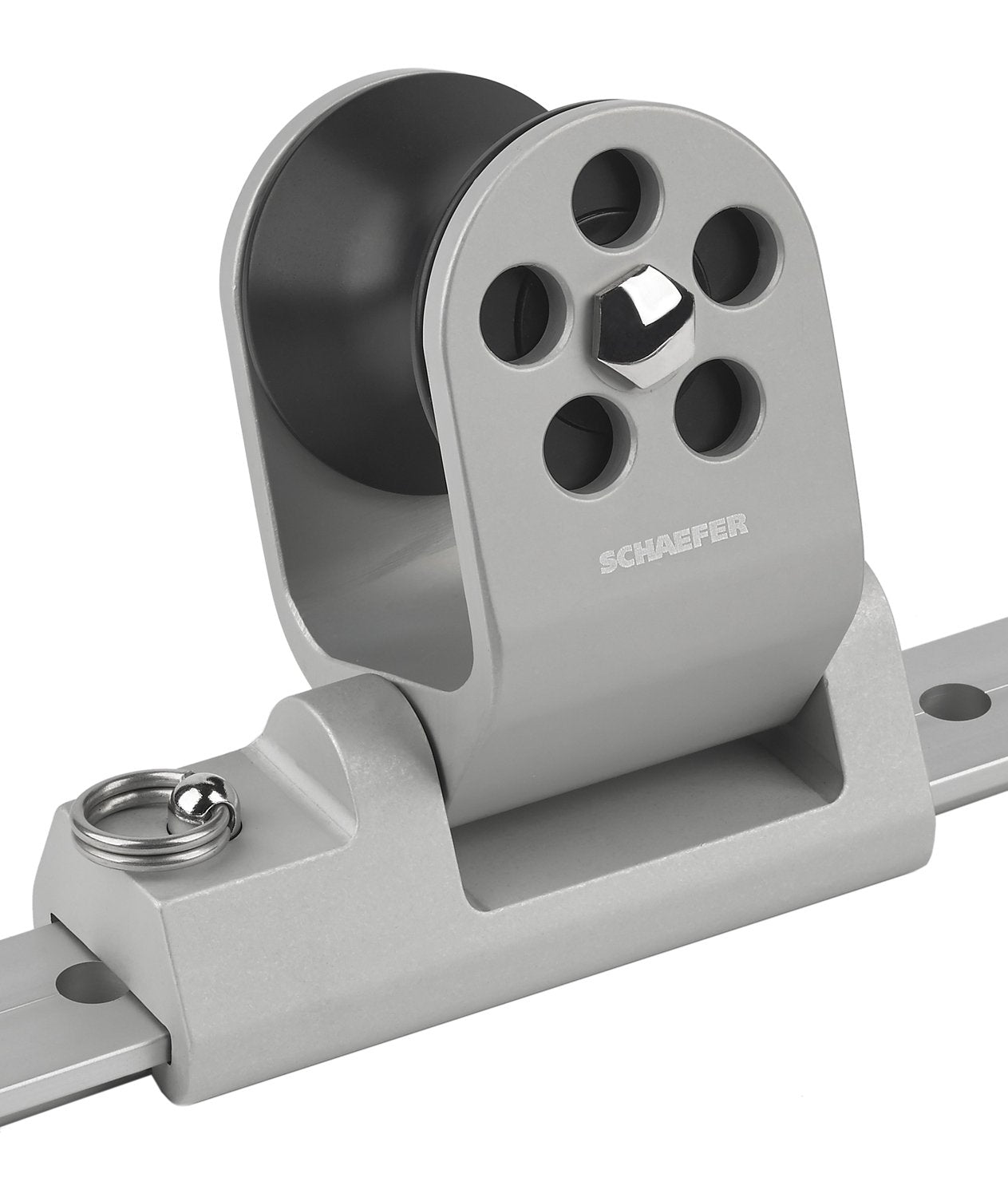

Schaefer 1" x 1/8" Twin Sheet Silver
32-77 Twin Sheet Lead block. Anodized aluminum body is machined from 6061-T6 aluminum and articulates to ensure a proper lead. Anodized aluminum sheave runs on nomex(tm)/Teflon(tm) bearing for a low-friction high strength sheave. Pin stop makes adjustment simple.
Specifications:
Track Size: 1" x 1/8" (25 mm x 3 mm)
Boat Size: Up To LOA, Displ., Sail Area: 27' (8m), 5000 lbs. (2270kg), 315 sq. ft. (29m2)
Sheave Dia.: 1 1/2" (38 mm)
Max Line: (2) 1/2" (13 mm)
Length: 3 1/2" (89 mm)
Width: 1 11/32" (34 mm)
Height: 3 9/32" (83 mm)
Bearing Height: 1 29/32" (49 mm)
SWL: 2500 lbs. (1135 kg)
Weight: 10 oz. (284 g)
