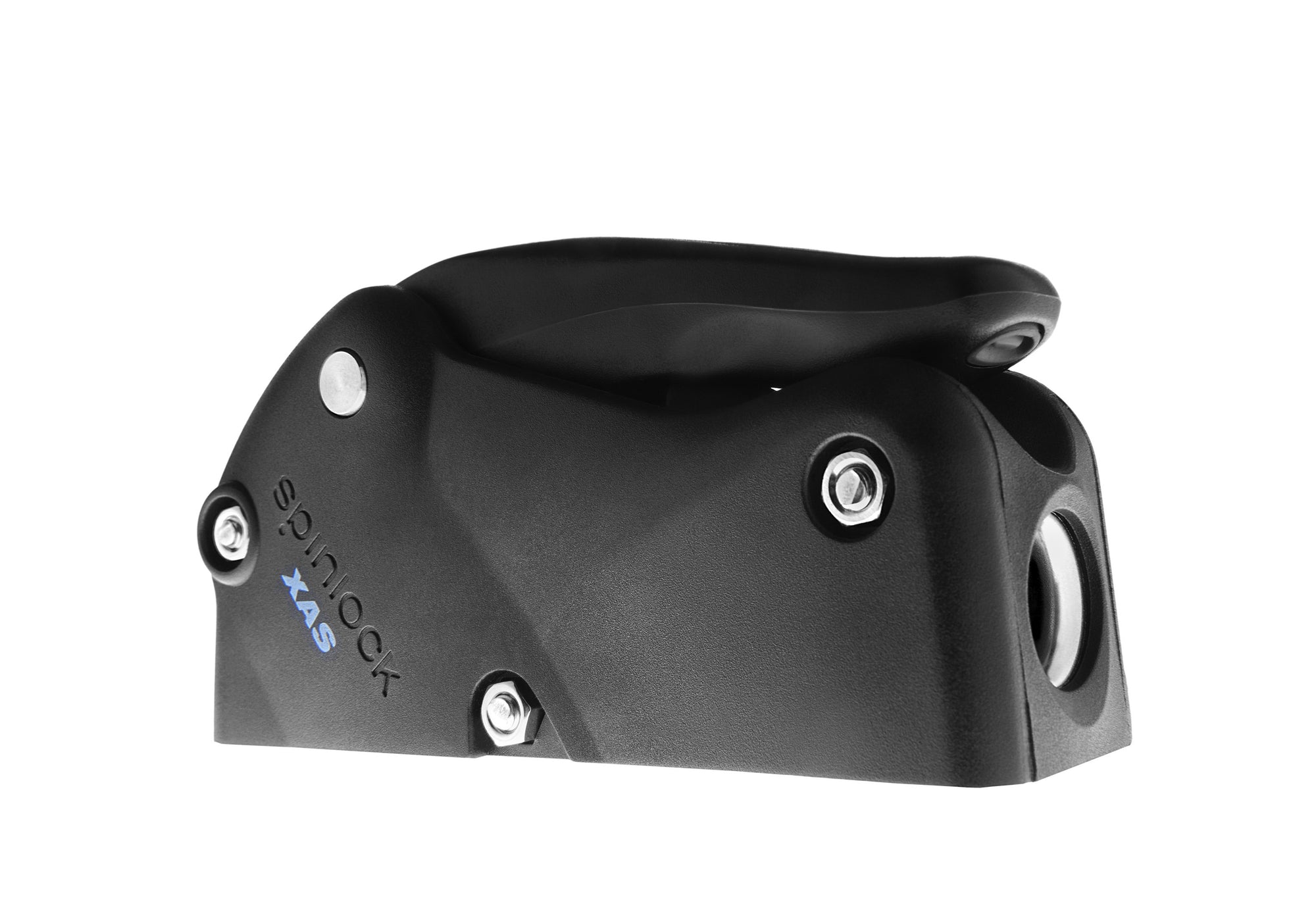

Spinlock XAS Single Clutch 4-8mm Rope

Item #

XAS0408/1

Usually ships within 1-3 days

Product Description

Spinlock XAS Single Clutch for Rope 4-8mm

Features and Benefits:

  • Effortless release

  • Line friendly

  • Larger diameter version available for 6-12mm lines

  • Side mountable, installs on it's side with fairing kit XAS-SMNT

    Specifications:



    Rope Range: 4mm - 8mm (5/32" - 5/16")

    Loads up to 400kg (880lbs)



    Max Safe Working Load:  450kg (990lb)

    Weight:  270g (0.5954lb)

    Fasteners: 2 x M6 (1/4") CSK Head (not supplied)



    Side Mounting

    Side mounting is usually the neatest solution for spars, side decks and coamings

    Support (Click to view)

    XAS Side Mount Port Drill Guide

    XAS Side Mount Starboard Drill Guide

    XAS Clutch Installation & Use Guide
