Product Description

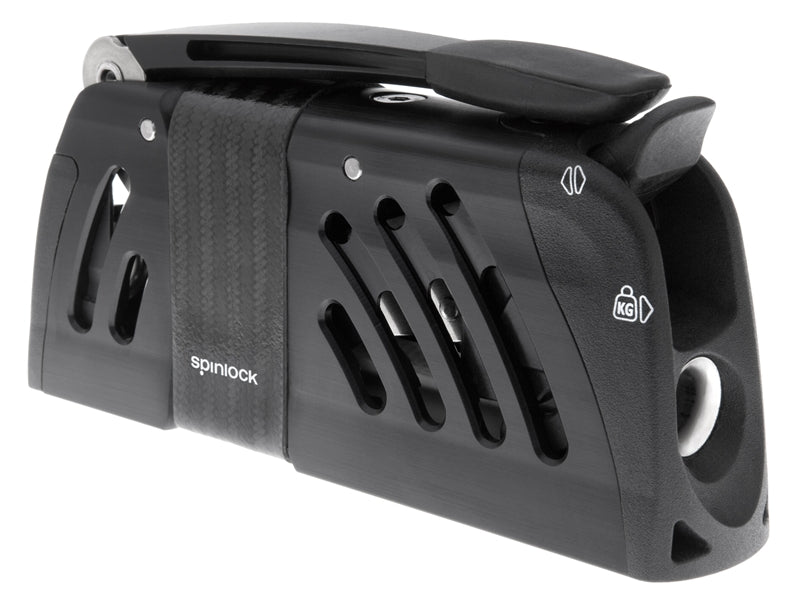

Spinlock XXC Single Power Clutch CTiC 5/16" to 1/2" - Remote Release, No Handle
Meets growing demand for an ultra high performance Clutch
Choose XXC for working loads/diameters that can't be held reliably with conventional clutches but where the winch release of the ZS Jammer is impractical
Choose ZS for bigger diameters/high loads where winched release is positive safety feature and instant release is unnecessary
Specifications:Rope Range - 8mm - 12mm (5/16" - 1/2")
Load - 1200kg - 2350kg (2640lb - 5180lb)
Max SWL - 2350kg (5180lb)
Weight - 0.806kg (1.78lb)
Fasteners - 2 x M8 (5/16") Titanium Hex Head (Supplied)
Features and Benefits:
Holds up to 2350kg working load, 30% higher than the standard XX0812, yet still provides controlled release under load
XXC0812 delivers a 50% increase in power: weight, yet is 15% lighter
Lightened handle and body; locally reinforced with unidirectional carbon fiber and with critical components in Titanium*
Ceramic coated jaws hold hybrid covered lines at loads up to 2350kg and help resist heat generated at higher line speeds for extended jaw life
Optimized for high performance 8-12mm (5/16-1/2”) line diameters
Internal Torlon roller bearings ensure lasting performance and durability under high loads
Easy on-deck access for removing complete internal assembly even when banked together
Access ports for fresh water flushing
Black, silver and amber versions available
NB: XXC is available with 17-4PH stainless steel parts for teams competing in classes where Titanium is prohibited
Click Here for Installation & Usage Guide
Click Here for XXC Clutch Drill Template
