Product Description

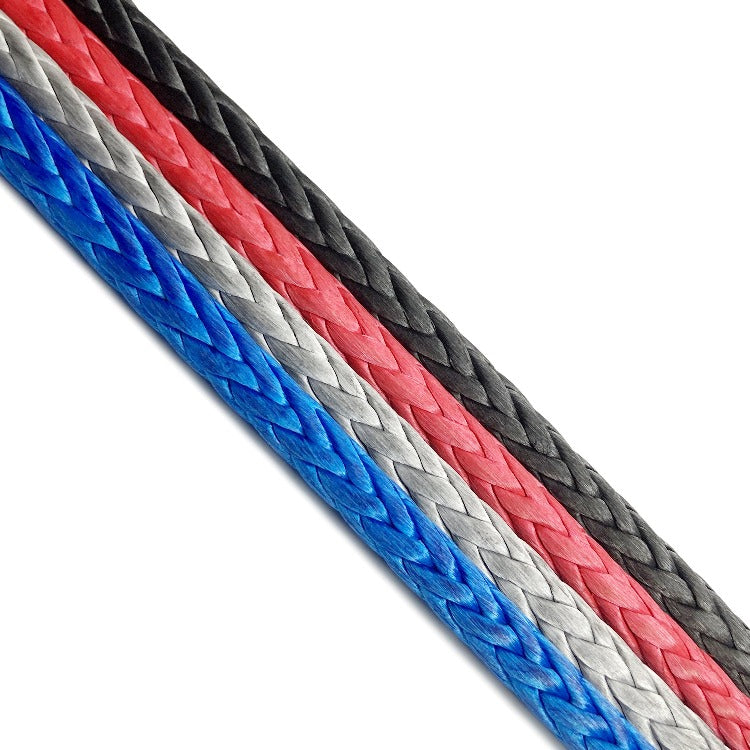

Cut Lengths of Samson Amsteel Blue - Red
AmSteel®-Blue is a torque-free 12-strand braid that, size-for-size, is as strong as steel but outlasts wire 3:1, making it an excellent wire rope replacement. At only 1/7th the weight of wire, it is a safe and efficient solution for all marine applications where wire is traditionally used. The combination of Dyneema® fiber and Samthane coating provide abrasion and tension fatigue resistance for superior wear. AmSteel®-Blue is easily spliced and inspected. AmSteel®-Blue is recommended for split-drum winch applications. It is not recommended for use on H-bitts, capstans, or cleats if surging or rendering the rope is required. AmSteel®-Blue has been verified by ABS according to MEG4, and is type approved by: ABS, BV, DNV, Lloyd's, and RMRS.
Please note that diameters 7/64" and smaller are 8-strand rather than 12-strand
Specifications:
| Diameter (inches) |
Weight per 100' (lbs) |
Tensile Strength (lbs)
|
| 7/64" |
0.30 |
1,600 |
| 1/8" |
0.50 |
2,500 |
| 5/32" |
0.75 |
4,000 |
| 3/16" |
1.00 |
5,400 |
| 1/4" |
1.60 |
8,600 |
| 5/16" |
2.70 |
13,700 |
| 3/8" |
3.40 |
19,600 |
| 7/16" |
4.50 |
23,900 |
| 1/2" |
5.90 |
34,000 |
| 5/8" |
10.2 |
52,800 |
| 3/4" |
13.3 |
64,400 |
Applications:
Uncovered: Primary cascades, vangs, travelers for dinghies
Covered: Halyards, sheets & tack lines
ATV / Jeep Winch Lines
Working Winch Lines
Control Lines and Halyards
Davits
Emergency Tow Systems
General Working Lines / Vessel Mooring
Lifelines / lifting slings
Primary Mooring Lines / Non-jacketed
Pulling / Stringing Lines
Reef Lines
Running Back
Shield Hauler
Stage, Event, and Special Effects Rigging
Trapeze Line
Trawl or Bridle Lines
Tug Lines
Robotics projects
