Product Description

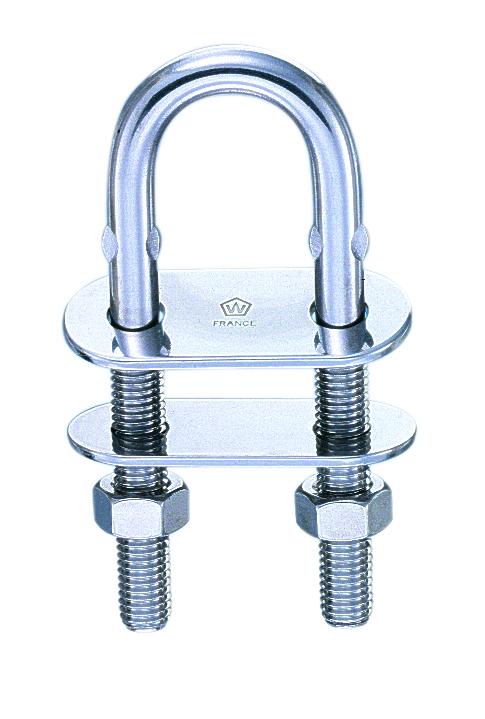

Wichard 15/32" Diameter & 5 1/8" Long U Bolt
Features
Weight - 0.77 Lbs (349 g)
Length - 5 1/8" (130mm)
Working Load - 14110 Lbs (6400 kg)
Breaking Load - 22040 Lbs (10000 kg)
A - 1 47/64" (44mm)
B - 1 11/32" (34mm)
C - 2 49/64" (70mm)
Diameter - 1/2" (12mm)
Description
Fully drop forged product with high quality stainless steel
Outstanding working and breaking loads
For any kind of fastening applications (shrouds, lilfelines, blocks...)
Delivered with bolts and counter-plate
Max tightening torque : 2.3 Nm
Applications
Various fastening applications: shrouds, lifelines, blocks…
Material
Grade 316L stainless steel
