Tylaska 6 13/16" T30 Clevis Bail Snap Shackle

Item #

TY1030-CR

Usually ships within 1-3 days

Product Description

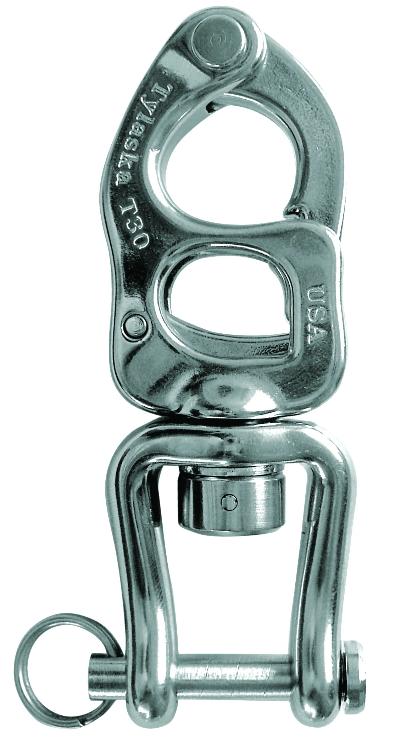

Tylaska 6 13/16" T30 Clevis Bail Snap Shackle

Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.

Specifications

  • Shackle Type - T30 Clevis Bail

  • Safe Working Load(lb.) - 15,000 (6,800kg)

  • Breaking Strength(lb.) - 30,000 (13,610kg)

  • Boat Size(ft.) - 60' - 80'

  • Weight(oz.) - 31.7 (899g)

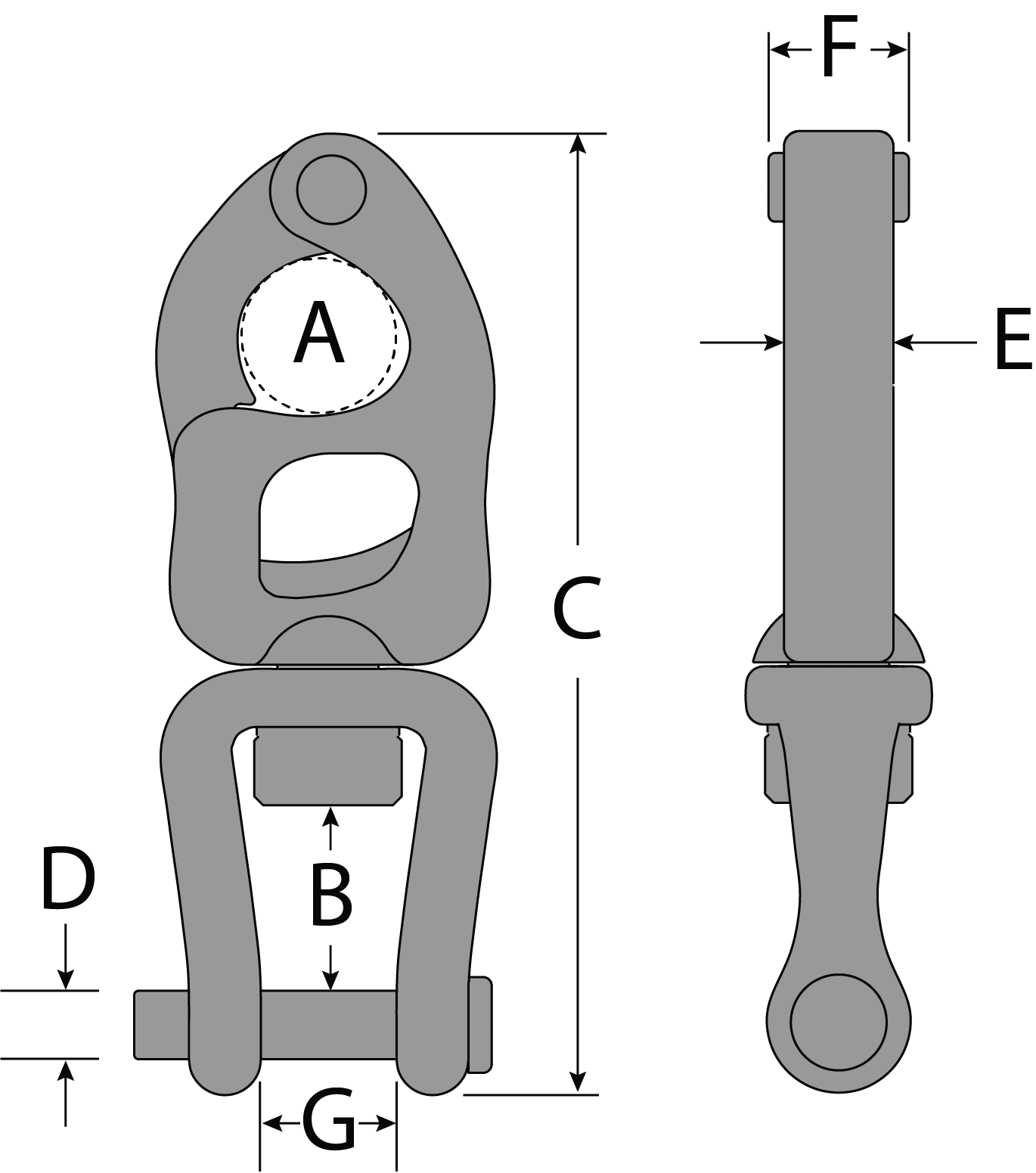

    Dimensions

  • A(in.) - 1.23" (31.2mm)

  • B(in.) - 1.29" (32.8mm)

  • C(in.) - 6.91" (175.5mm)

  • D(in.) - 0.56" (14.3mm)

  • E(in.) - 0.77" (19.6mm)

  • F(in.) - 0.97" (24.7mm)

  • G(in.) - 1.03" (26.2mm)
  •
