Tylaska 8 19/32" T40 Large/Clevis Bail Swivel

Item #

TY1240-LC

Usually ships within 1-3 days

Product Description

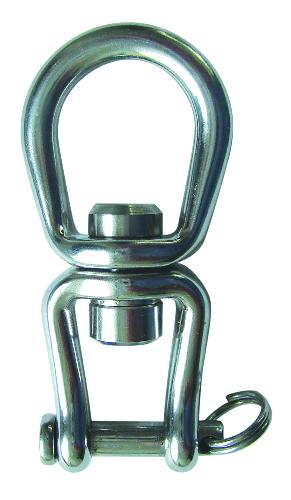

Tylaska 8 19/32" T40 Large/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T40 Large/Clevis Bail Swivel

  • Safe Working Load(lb.) - 20,000 (9,070kg)

  • Breaking Strength(lb.) - 40,000 (18,140kg)

  • Weight(oz.) - 64.3

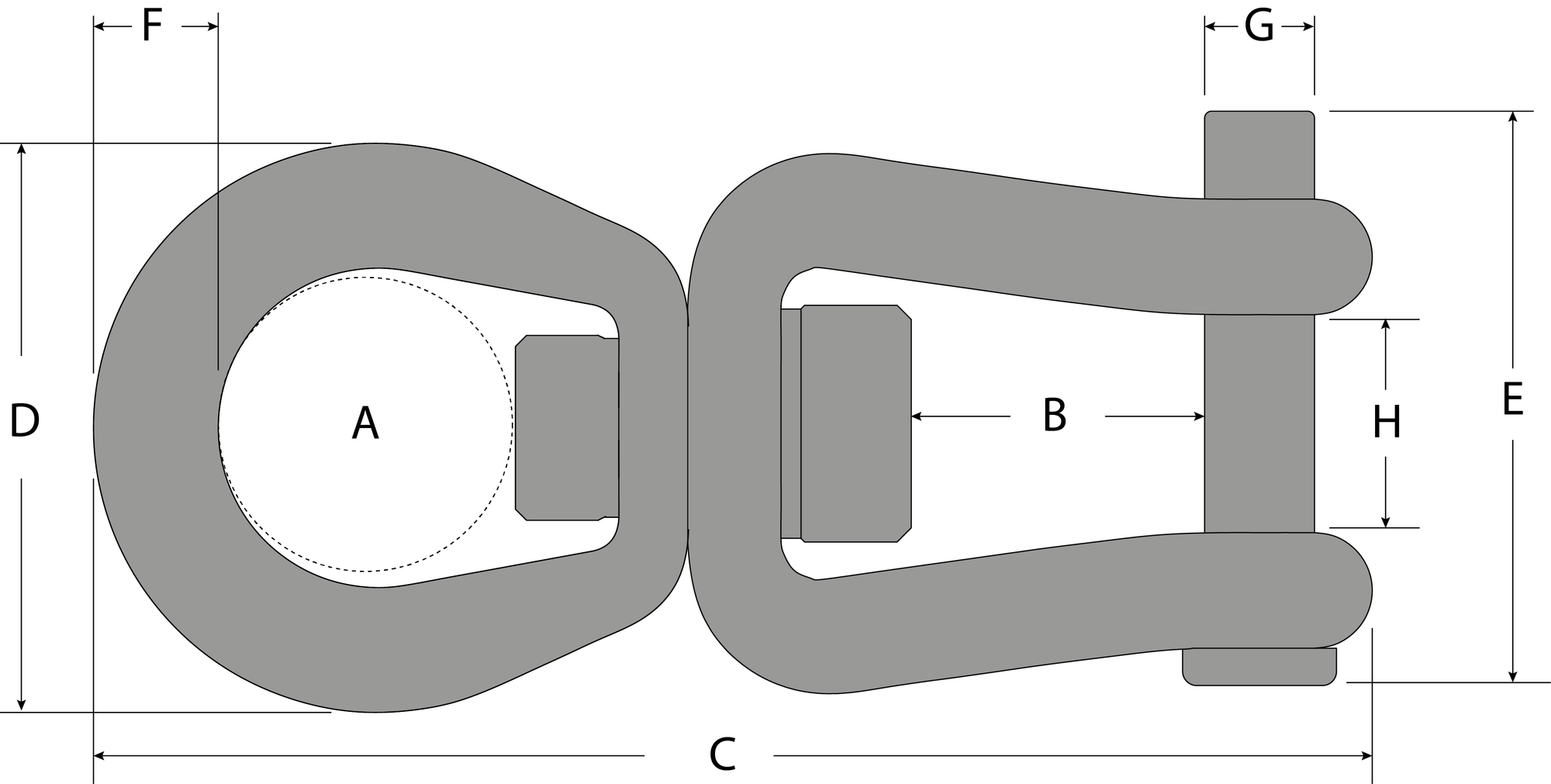

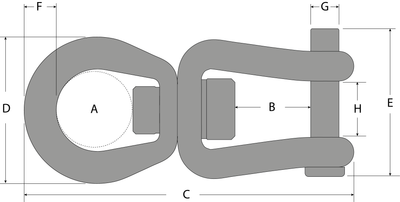

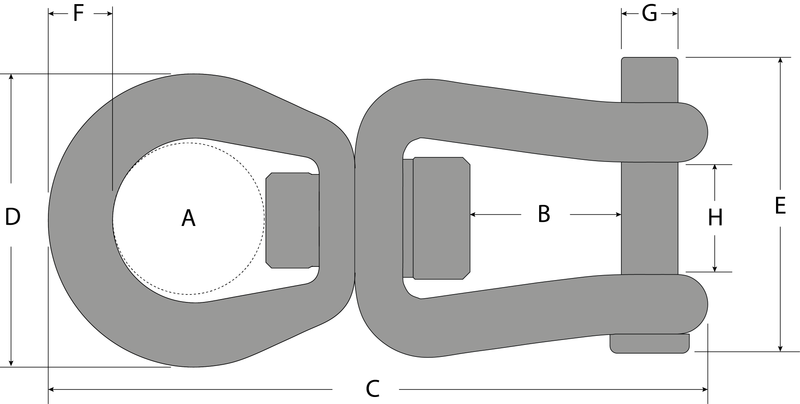

    Dimensions

  • A(in.) - 2.67" (67.8mm)

  • B(in.) - 2.00" (50.8mm)

  • C(in.) - 9.96" (252.9mm)

  • D(in.) - 4.90" (124.5mm)

  • E(in.) - 3.90" (99.1mm)

  • F(in.) - 1.04" (26.4mm)

  • G(in.) - 0.75" (19.1mm)

  • H(in.) - 1.50" (38.1mm)
