Product Description

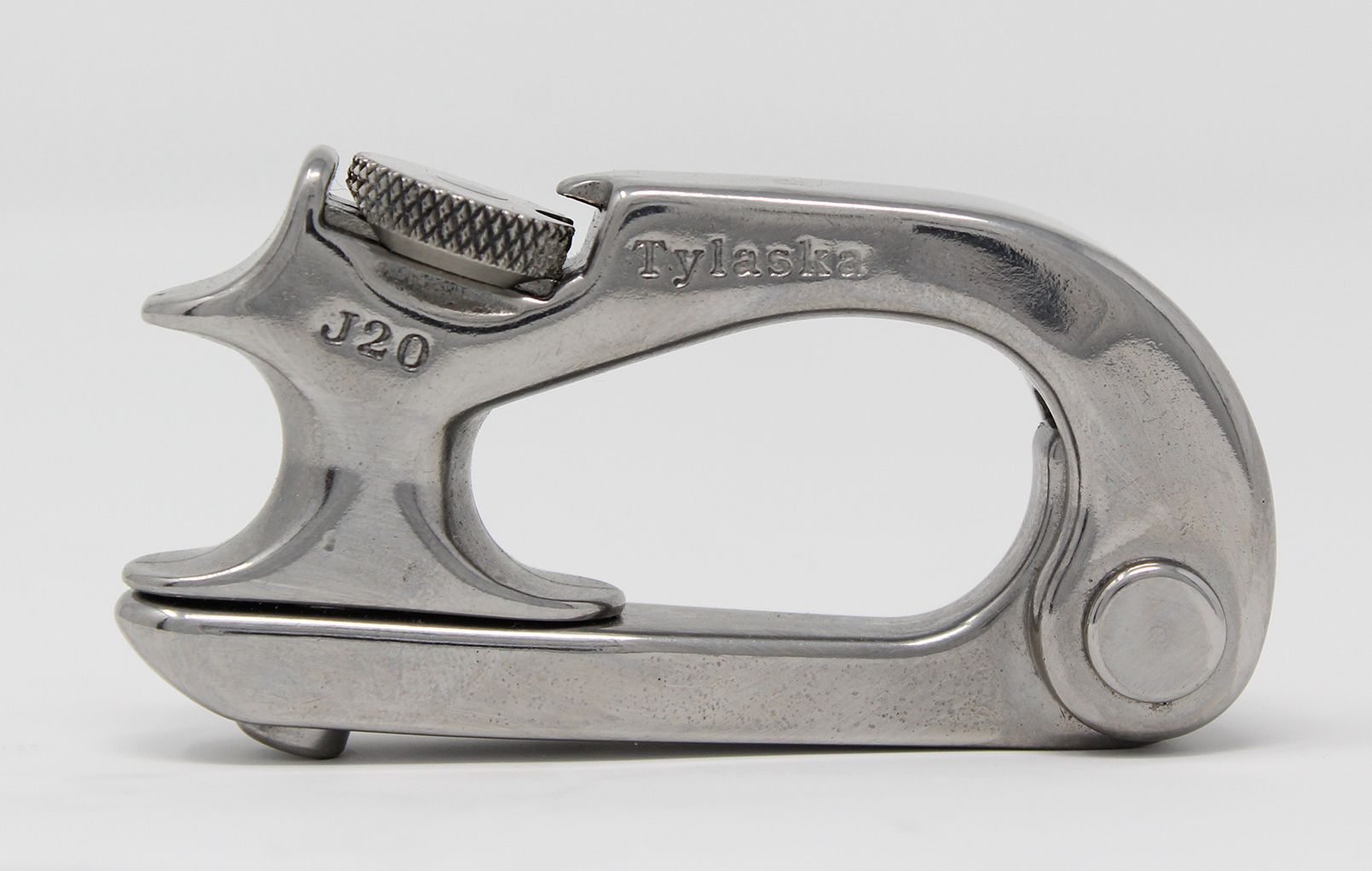

Tylaska 3" J20 J-Lock Shackle
Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. The unique patented double-locking plunger locks in two directions to provide the ultimate protection against accidental opening during flogging.
Easy to use working mechanism
Heat treated 17-4 PH stainless steel
Specifications
J Lock Type - J20
Safe Working Load(lb.) - 10,000 (4,536kg)
Breaking Strength(lb.) - 20,000 (9,072kg)
Line Size(mm) - 1/2" - 5/8" (12mm-16mm)
Weight(oz.) - 5.9 (167g)

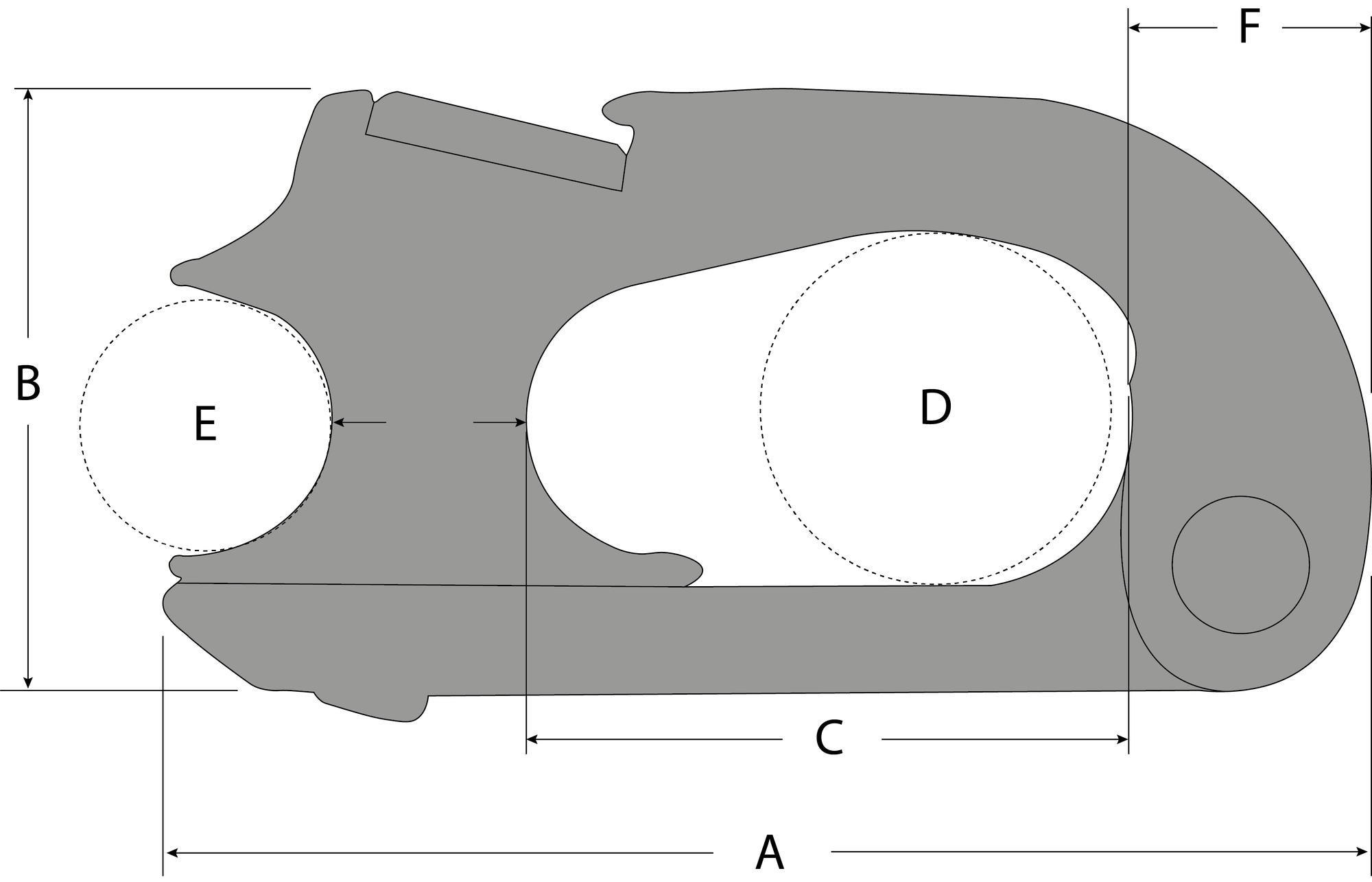

Dimensions
A(in.) - 3.03" (77mm)
B(in.) - 1.53" (38.9mm)
C(in.) - 1.50" (38.1mm)
D(in.) - 0.84" (21.3mm)
E(in.) - 0.63" (16mm)
F(in.) - 0.63" (16mm)
Thickness(in.) - 0.49" (12.4mm)
