Tylaska 5 9/16" T20 Large Bail Snap Shackle

Item #

TY1020-L

Usually ships within 1-3 days

Product Description

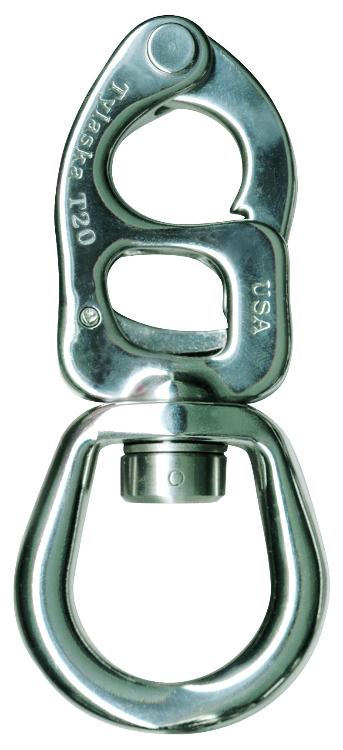

Tylaska 5 9/16" T20 Large Bail Snap Shackle

The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.

Specifications

  • Shackle Type - T20 Large Bail

  • Safe Working Load(lb.) - 10,000 (4,540kg)

  • Breaking Strength(lb.) - 20,000 (9,070kg)

  • Boat Size(ft.) - 40' - 70'

  • Weight(oz.) - 15.9 (451g)

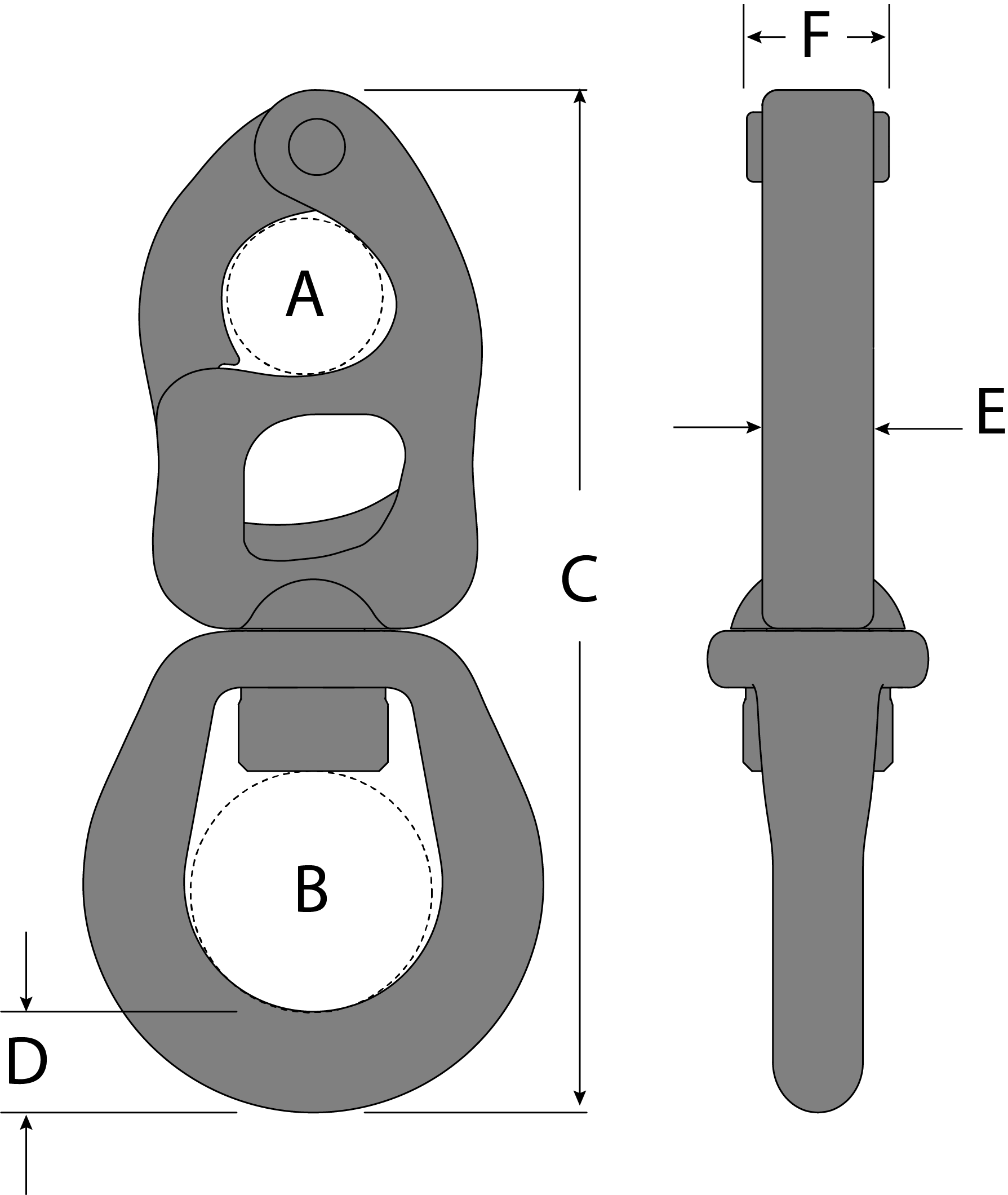

    Dimensions

  • A(in.) - 0.99" (25.1mm)

  • B(in.) - 1.39" (35.3mm)

  • C(in.) - 5.79" (147.1mm)

  • D(in.) - 0.56" (14.2mm)

  • E(in.) - 0.55" (14mm)

  • F(in.) - 0.75" (19mm)
  •
