Tylaska 11 5/8" T50 Large/Large Bail Swivel

Item #

TY1250-LL

Usually ships within 1-3 days

Product Description

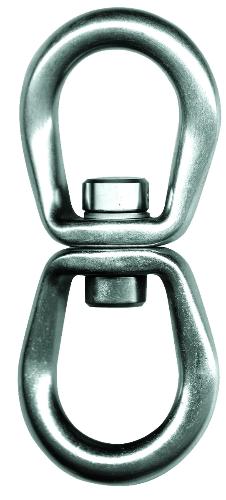

Tylaska 11 5/8" T50 Large/Large Bail Swivel

Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T50 Large/Large Bail Swivel

  • Safe Working Load(lb.) - 25,000 (11,340kg)

  • Breaking Strength(lb.) - 50,000 (22,680kg)

  • Weight(oz.) - 153.5

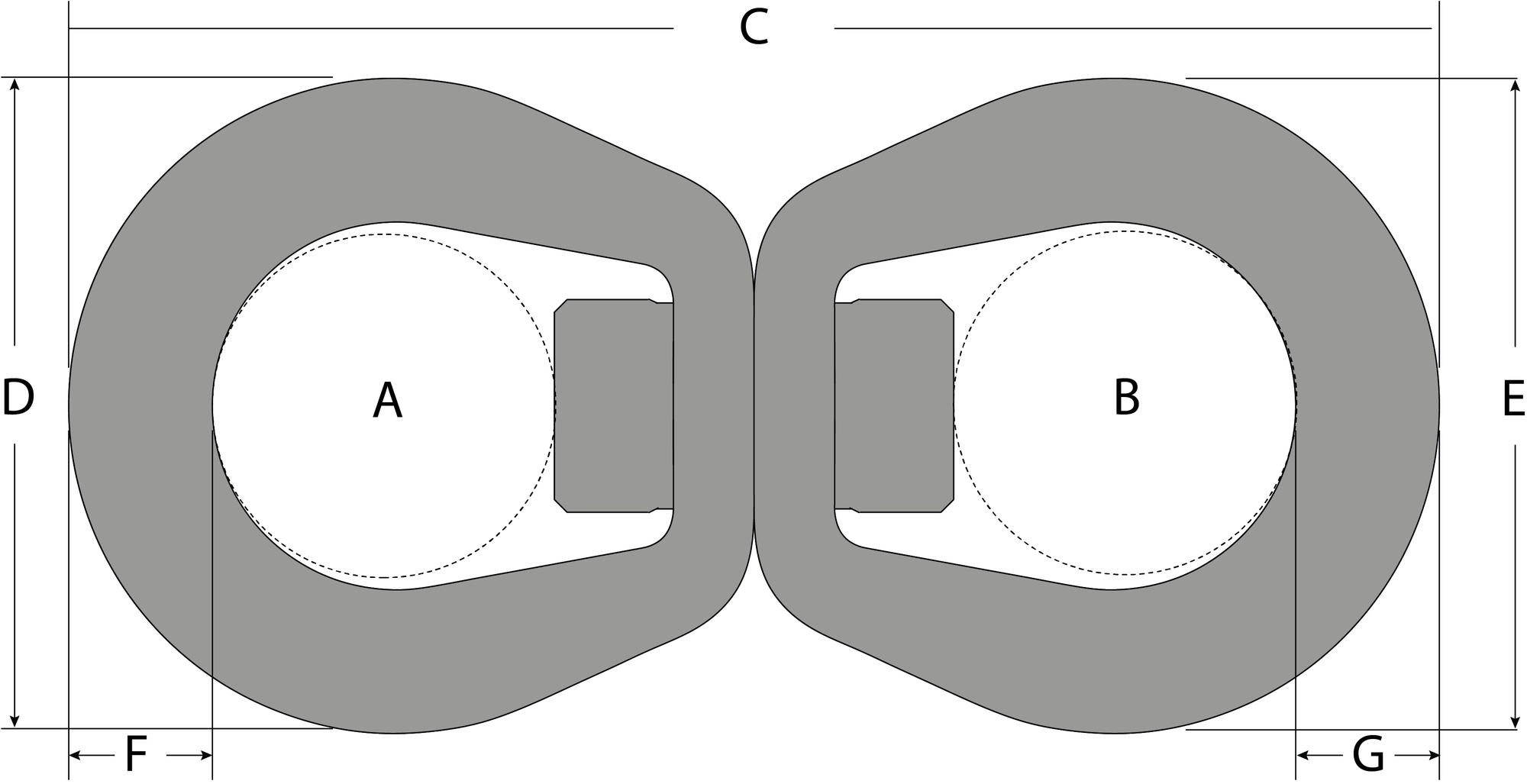

    Dimensions

  • A(in.) - 2.98" (75.7mm)

  • B(in.) - 2.98" (75.7mm)

  • C(in.) - 11.66" (296.2mm)

  • D(in.) - 5.49" (139.4mm)

  • E(in.) - 5.49" (139.4mm)

  • F(in.) - 1.14" (29mm)

  • G(in.) - 1.14" (29mm)
