Product Description

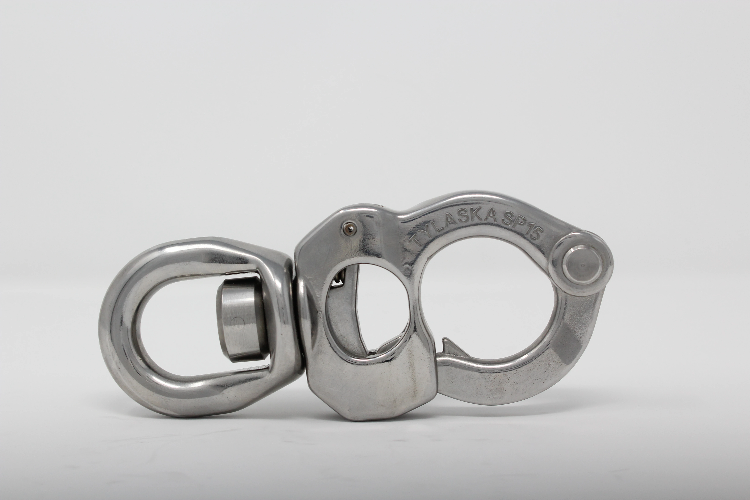

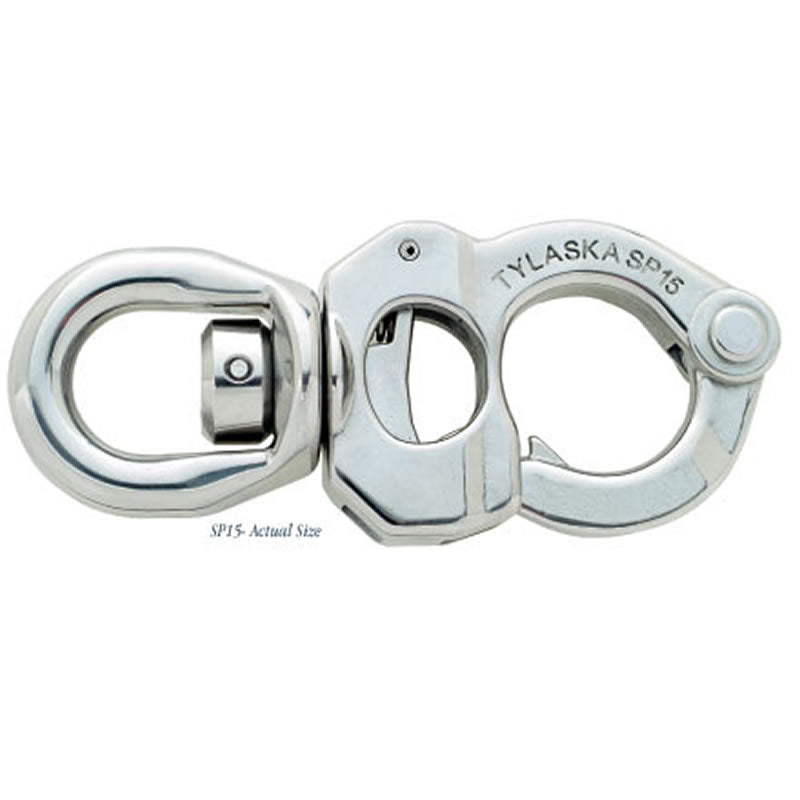

Tylaska SP15 Trigger Style Snap Shackle
Tylaska’s SP snap shackles are a retrofit of the old Sparcraft designed trigger release snap shackles. Made from the same durable 17-4PH stainless as before, the castings are now hipped to create a finished part similar to a forging in strength and metal consistency. While not as capable of high-load releases as the T shackle, the SP shackle is still a high quality and rugged shackle that lives up to the Tylaska name it carries. SP snap shackles offer a larger eye and are a more economic choice when compared with their T shackle counterparts.

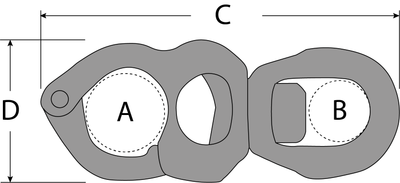

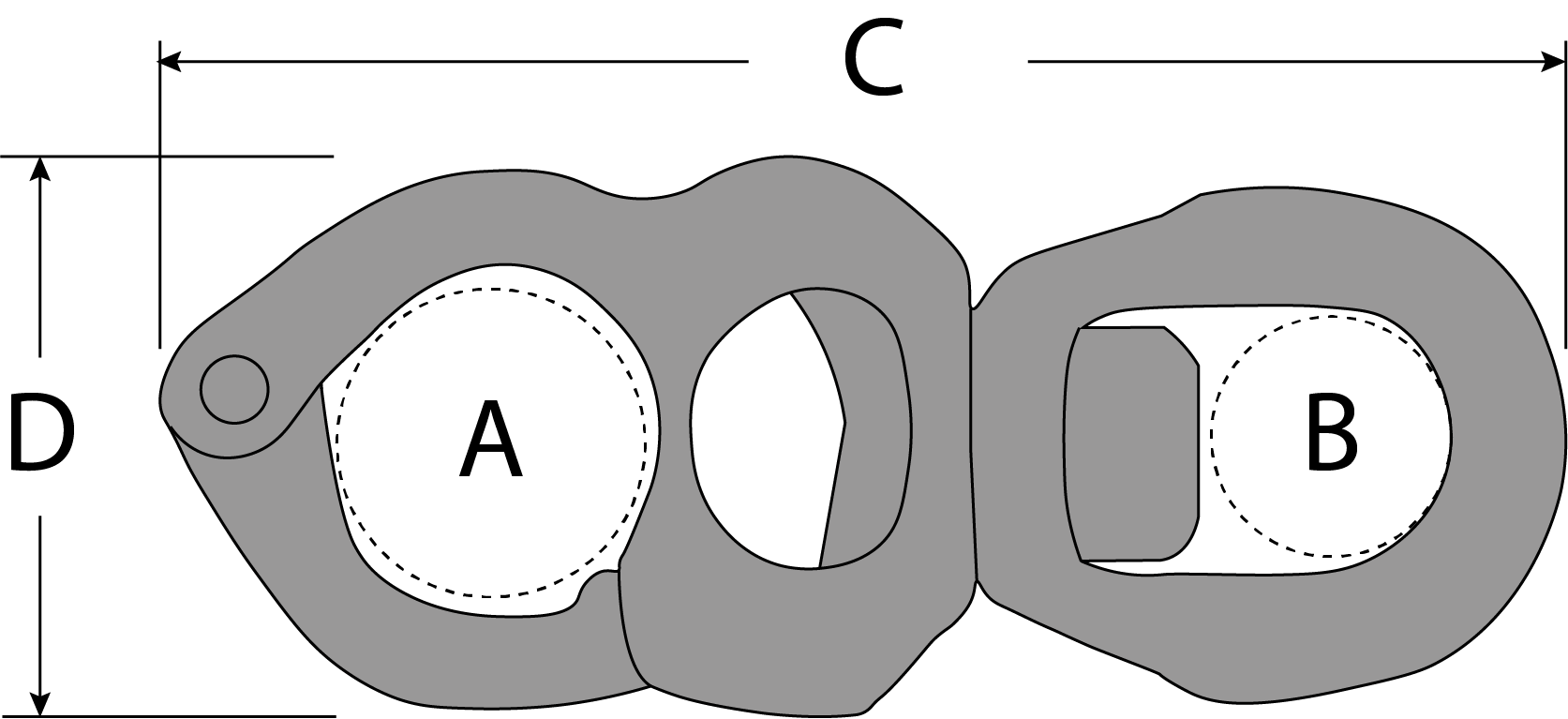

Specifications:
A - 1.500in (38.1mm)
B - 1.060in (27mm)
C - 6.000in (152mm)
Weight - 21.4oz (1.33Lb)
Work Load - 15,000Lb (6,803Kg)
Breaking Strength - 30,000Lb (13,607Kg)
The Tylaska SP15 Snap Shackles was driven by lower-stretch materials, in particular the loads generated by code Zero headsails.
This product serves as a dependable solution to larger cruising boats in the 100’+ range.
