Product Description

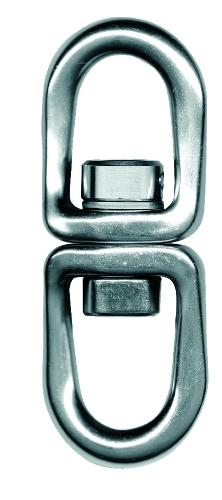

Tylaska 4 11/16" T20 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T20 Std/Std Bail Swivel
Safe Working Load(lb.) - 10,000 (4,540kg)
Breaking Strength(lb.) - 20,000 (9,070kg)
Weight(oz.) - 9.9

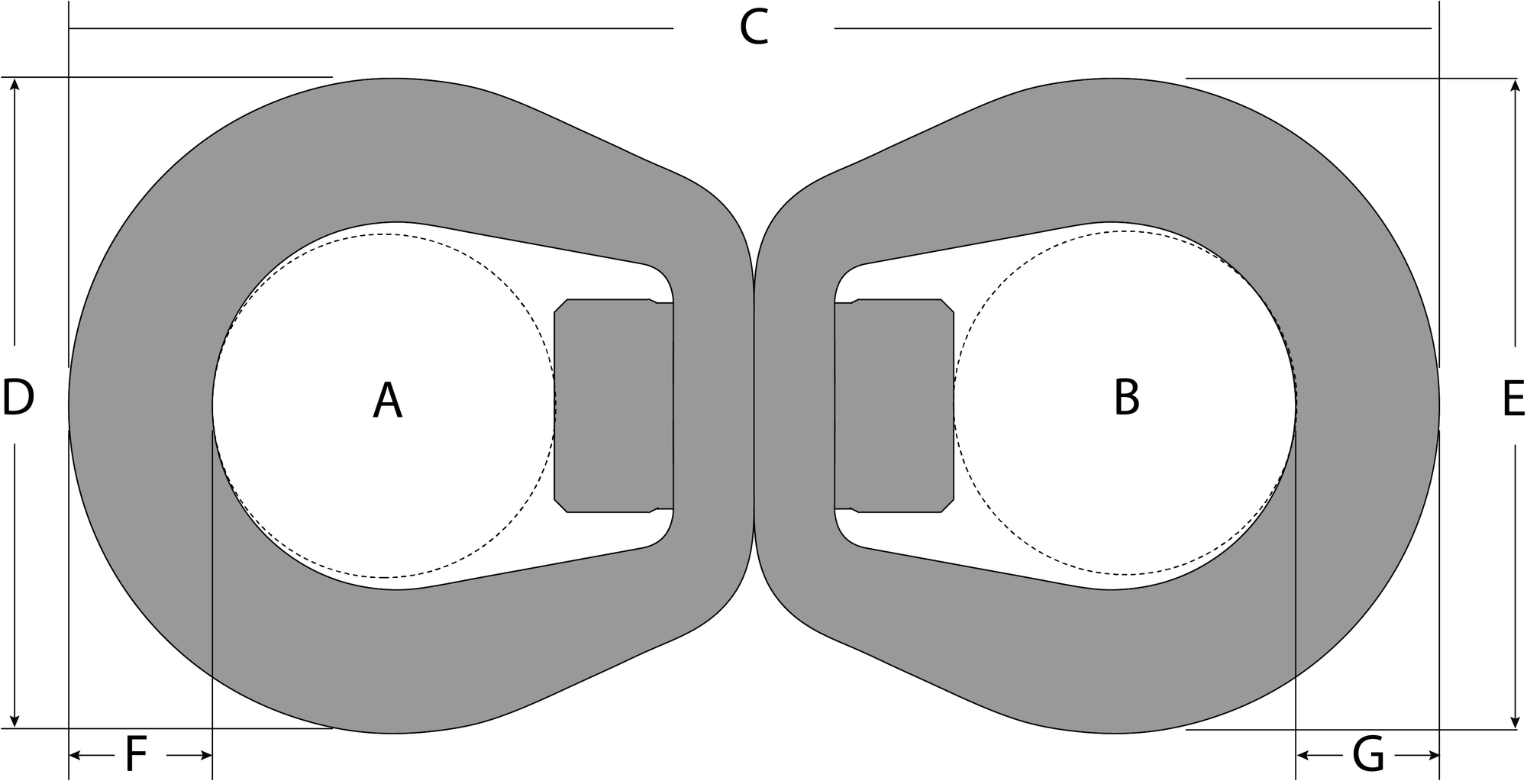

Dimensions
A(in.) - 0.99" (25.1mm)
B(in.) - 0.99" (25.1mm)
C(in.) - 4.44" (112.8mm)
D(in.) - 1.86" (47.2mm)
E(in.) - 1.86" (47.2mm)
F(in.) - 0.44" (11.2mm)
G(in.) - 0.44" (11.2mm)
