Product Description

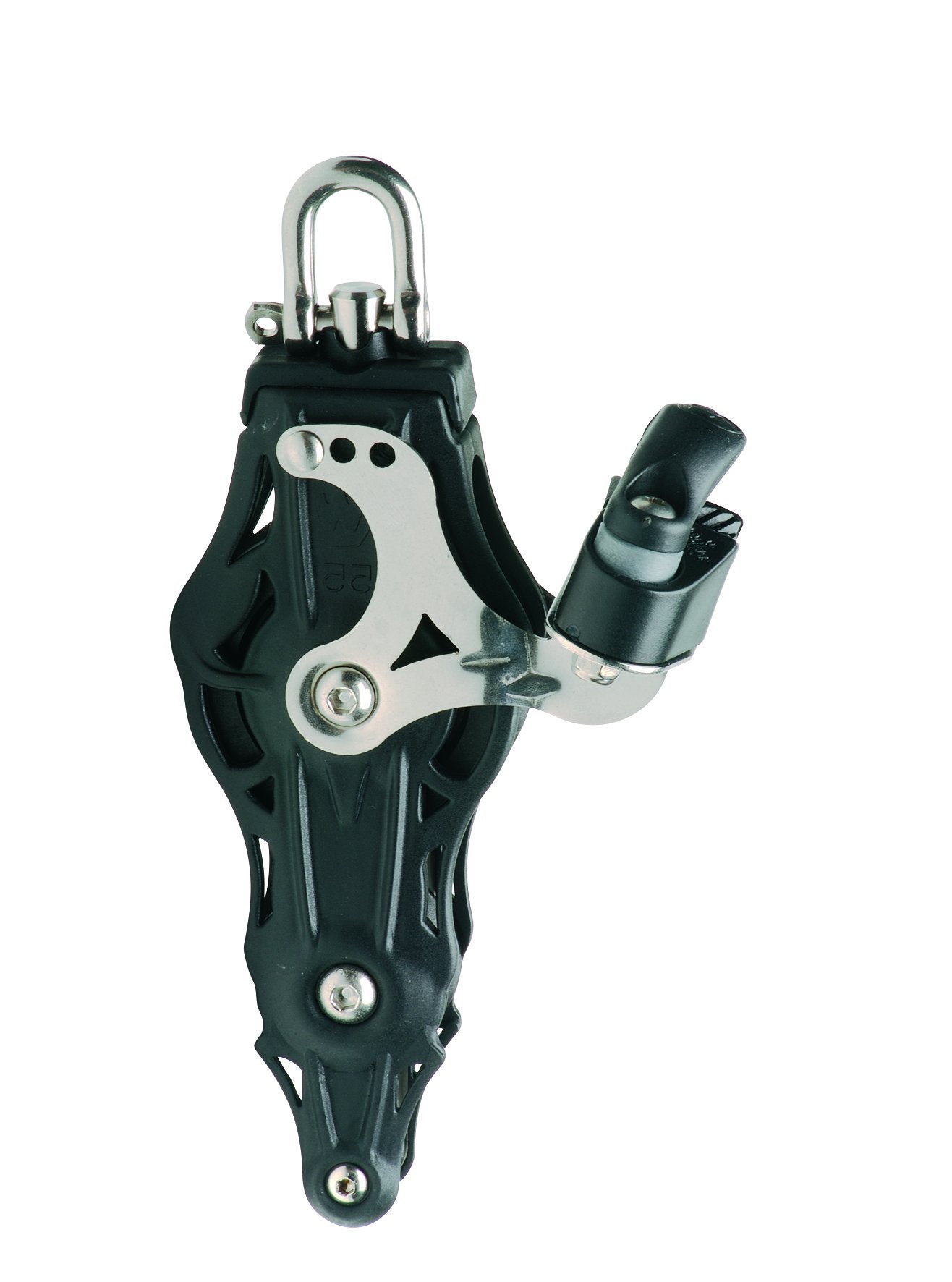

Wichard 2 49/64" (70mm) Fiddle Block w/ Swivel Head, Becket & Cam Cleat
Features
Weight - 1.8 lbs. (806 g)
Sheave Diameter - 2 49/64" (70mm)
Shackle Diameter - 5/16" (8mm)
Length - 9 19/64" (236mm)
Width - 4 23/32" (120mm)
Thickness - 3 5/32" (80mm)
Working Load - 1058 Lbs (480 kg)
Breaking Load - 5950 Lbs (2700 kg)
Rope Size - 9/16" (14mm)
Forged Shackle - 5/16" (8mm)
Applications
Mainsheet systems
Boom vangs
Material
Grade 316L stainless steel head configuration
Grade 316L stainless steel load straps
Polycarbonate flanges
Composite saddle for cam models
Composite sheave
