Product Description

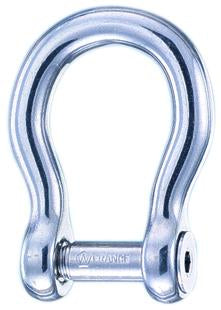

Wichard 5/16" Diameter Allen Head Pin Bow Shackle
Features
Weight - 0.148 Lbs (67 g)
Working Load - 2116 Lbs (960 kg)
Breaking Load - 4762 Lbs (2700 kg)
A - 1 29/64" 37mm)
B - 5/8" (16mm)
Diameter - 5/16" (8mm)
Description
Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
The pin is locked into one of the indentations
The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
No risks of loose due to vibrations
Outstanding working and breaking loads
Applications
Ideal to link chain and anchor
On the halyard, avoids to damage the sails
To be used when the clutter is reduced
To be used when ample room is required
Material
Grade 316L stainless steel
