Product Description

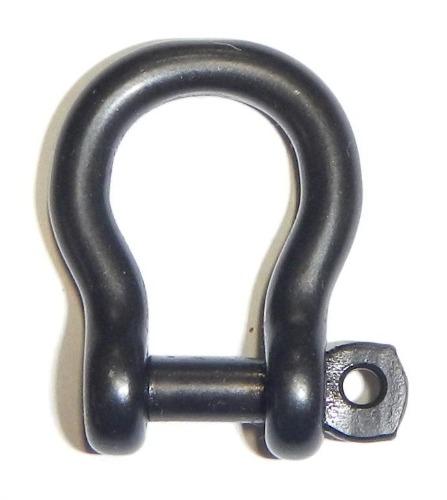

Wichard 5/32" Diameter Bow Shackle w/ Captive Pin - Black
Features
Weight - 0.022 Lbs (10 g)
Working Load - 705 Lbs (320 kg)
Breaking Load - 1764 Lbs (1000 kg)
A - 45/64" (18mm)
B - 5/16" (8mm)
C - 13/64" (5mm)
Diameter - 5/32" (4mm)
Description
Captive pin bow shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
Applications
To be used when ample room is required
Possibility to attach several lines or cables
Material
Grade 316L stainless steel
