Product Description

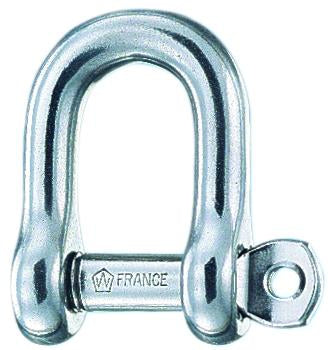

Wichard 13/32" Diameter D Shackle w/ Captive Pin
Features
Weight- 0.251 Lbs
Working load- 3351 Lbs
Breaking load- 9171 Lbs
A- 1 19/64 inch
B- 51/64 inch
C- 7/16 inch
Diameter- 25/64 inch
Description
Captive pin "D" shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
Applications
Standard applications of shackle
Attachment applications: blocks, head …
Material
Grade 316L stainless steel
