Product Description

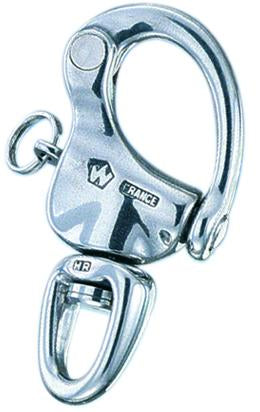

Wichard 4 3/4" Swivel Eye Snap Shackle
Features
Weight - 0.778 Lbs (353 g)
Length - 4 23/32" (120mm)
Working Load - 6173 Lbs (2880 kg)
Breaking Load - 15430 Lbs (7000 kg)
A - 1 1/64" (26mm)
B - 53/64" (21mm)
Description
HR Forged snap shackle (Grade 17.4 ph stainless steel) with swivel eye
Free rotation of the snap shackle thanks to the swivel eye
The plunger pin is set captive into the hook and cannot become detached > Excellent working and breaking loads
Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Applications
Snap shackle applications
Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Material
HR stainless steel 17.4 PH
