Product Description

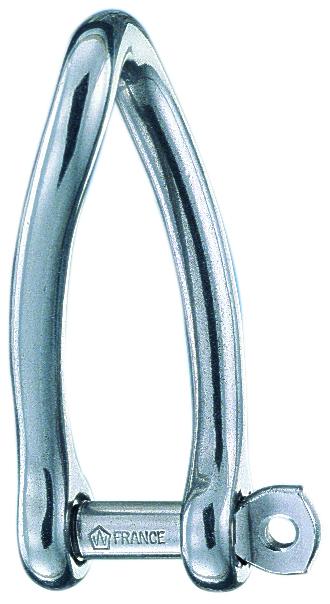

Wichard 5/16" Diameter Twisted Shackle w/ Captive Pin
Features
Weight - 0.198 Lbs
Working load - 2205 Lbs
Breaking load - 6526 Lbs
A - 2 5/16 inch
B - 5/8 inch
C - 11/32 inch
Diameter - 5/16 inch
Description
Captive pin twisted shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
Applications
Perfect for application where a 90° angle twist setup is required
Often used to attach an unarticulated part (block on a rail) or on purchases
Material
Grade 316L stainless steel
