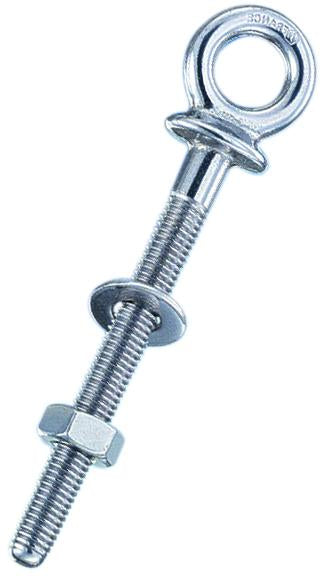

Wichard 1 9/16" Long Eye Bolt w/ 1/4" (6mm) Diameter

Item #

6490

Usually ships within 1-3 days

Product Description

Wichard 1 9/16" Long Eye Bolt w/ 1/4" (6mm) Diameter

Features

  • Weight - 0.053 Lbs (24 g)

  • Working Load - 1235 Lbs (560 kg)

  • Breaking Load - 1980 Lbs (900 kg)

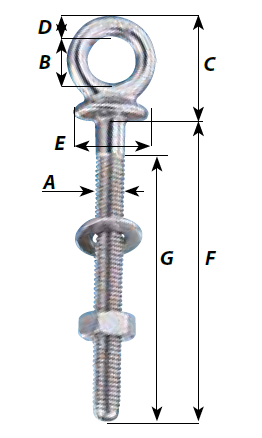

  • A - M6 x 100

  • B - 15/32" (12mm)

  • C - 63/64" (25mm)

  • D - 13/64" (5mm)

  • E - 43/64" (17mm)

  • F - 1 9/16" (40mm)

  • G - 1 11/32" (34mm)

    Description

  • A complete range of single piece forged products for fastenings applications

  • Outstanding working and breaking loads

  • Available in different sizes

    Applications

  • Various fastening applications

  • Towing application

  • Waterskiing lines attachment

    Material

  • Grade 316L stainless steel
