Wichard 2 3/8" Long Eye Bolt w/ 1/4" (6mm) Diameter

Item #

6491

Usually ships within 1-3 days

Product Description

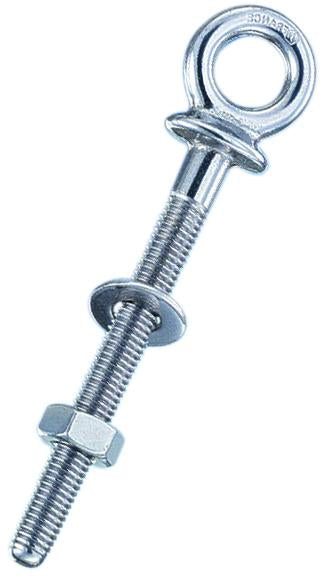

Wichard 2 3/8" Long Eye Bolt w/ 1/4" (6mm) Diameter

Features

  • Weight - 0.06 Lbs (27 g)

  • Working Load - 1235 Lbs (560 kg)

  • Breaking Load - 1980 Lbs (900 kg)

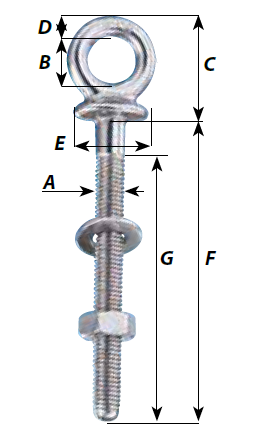

  • A - M6 x 100

  • B - 15/32" (12mm)

  • C - 63/64" (25mm)

  • D - 13/64" (5mm)

  • E - 43/64" (17mm)

  • F - 2 23/64" (60mm)

  • G - 2 1/8" (54mm)

    Description

  • A complete range of single piece forged products for fastenings applications

  • Outstanding working and breaking loads

  • Available in different sizes

  • Maximum tightening torque: 7.5Nm

    Applications

  • Various fastening applications

  • Towing application

  • Waterskiing lines attachment

    Material

  • Grade 316L stainless steel
