Product Description

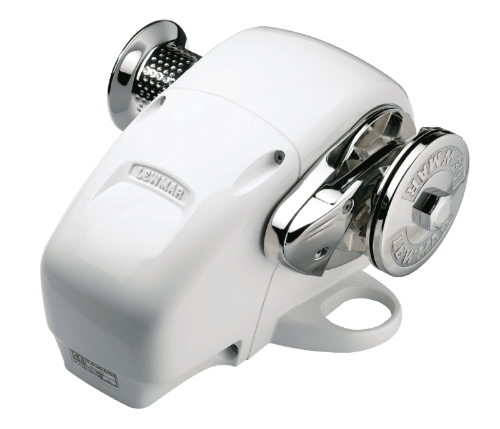

Lewmar H2 Gypsy Drum 12V w/ 5/16" (8mm) Kit
Kits include: Built-in-dual-direction contactor, Breaker and Rocker Switch
Specifications
Model - H3
Motor Power Watts - 1000W
Normal Current Draw - 85A
Circuit Breaker - 100A slow blow
Max Pull - 1962 lbs. (890 kg)
Max Line Speed - 92ft/min (28m/min
Working Load - 475 lbs. (215 kg)
Normal Line Speed - 59 ft. (18m)
Weight Gypsy/Drum - 56 lbs. (25.5 kg)
Gypsy Specifications
Gypsy Number - 505
Size - 5/16" (8mm)
Chain Description - 5/16" BB, 5/16" US G4 ISO, 8mm DIN 766, 8mm ISO 4565
Rope Description - 9/16"-5/8" (14-16mm) 3-strand and 8-plait (5/8" Only)
Cable Sizes
Voltage - 12V
Length of Cable Run - 0'-23'(0-7m) 23'-50'(7-15m) 6 AWG (16mm²) 2 AWG (25mm²)
Switch Wiring - 16 AWG (1.5mm²)
Current rating for Switch Wire - 5A
