Product Description

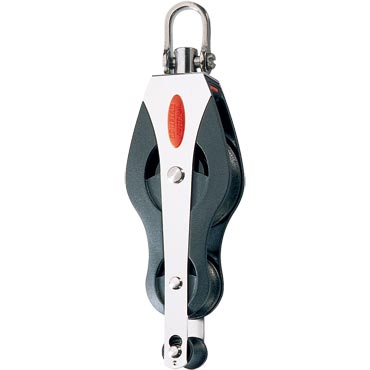

Ronstan Series 40 BB Block, Fiddle, Becket
Product Information
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
Features
- Low friction Acetal or Torlon® bearing system
- Cheek cut-outs for easy bearing maintenance
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
- Snap fit removable becket pin
Specifications
- Sheave Ø - 1 9/16 + 15/16 in.
Applications
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
- Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs
- On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls.
Materials
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
