Product Description

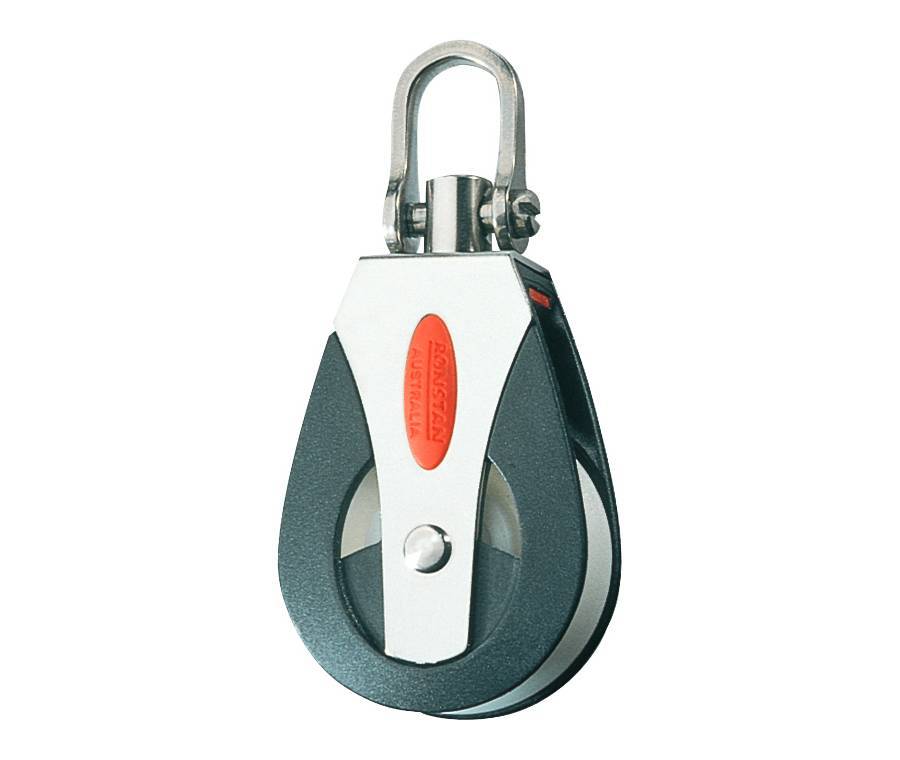

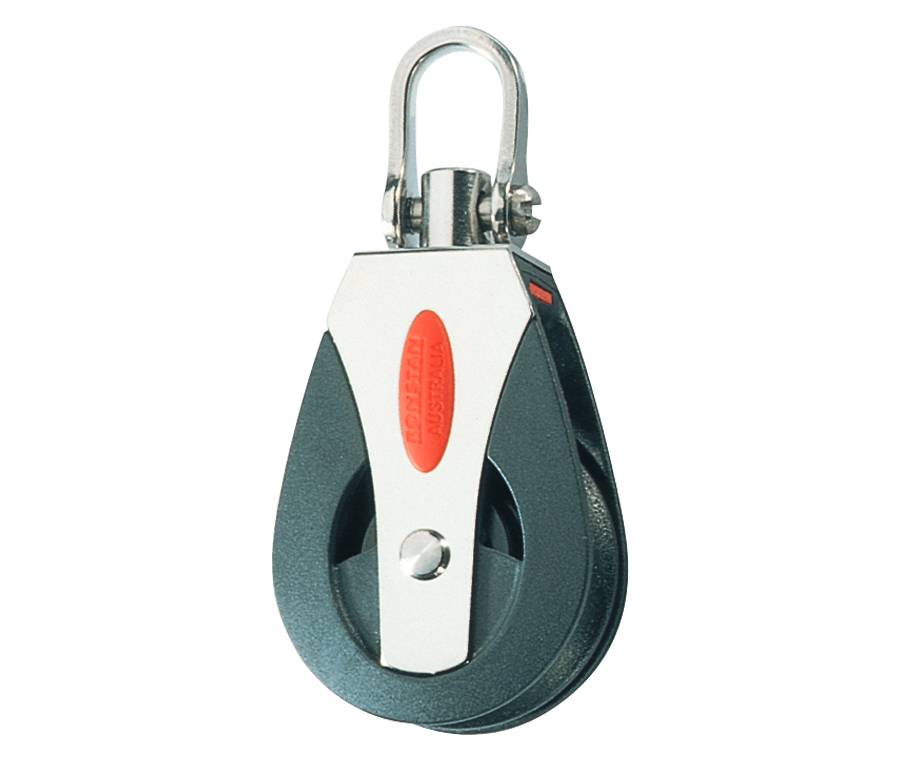

Ronstan Series 40 Single Block, universal head
Features
Sheave 1 9/16 in.
Max. Rope Ø - 3/8 in.
Max. Cable Ø - -
Pin Ø - 3/16 in.
M.W.L. 770 lb
B.L. 2200 lb
Weight - 2.5 oz.
Product Information
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Applications
Mainsheet
Halyard
,li>Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sports boats up to 8m 926 ft)
Materials
Acetal ball bearings
UV stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fibre reinforced Nylon cheeks
