Product Description

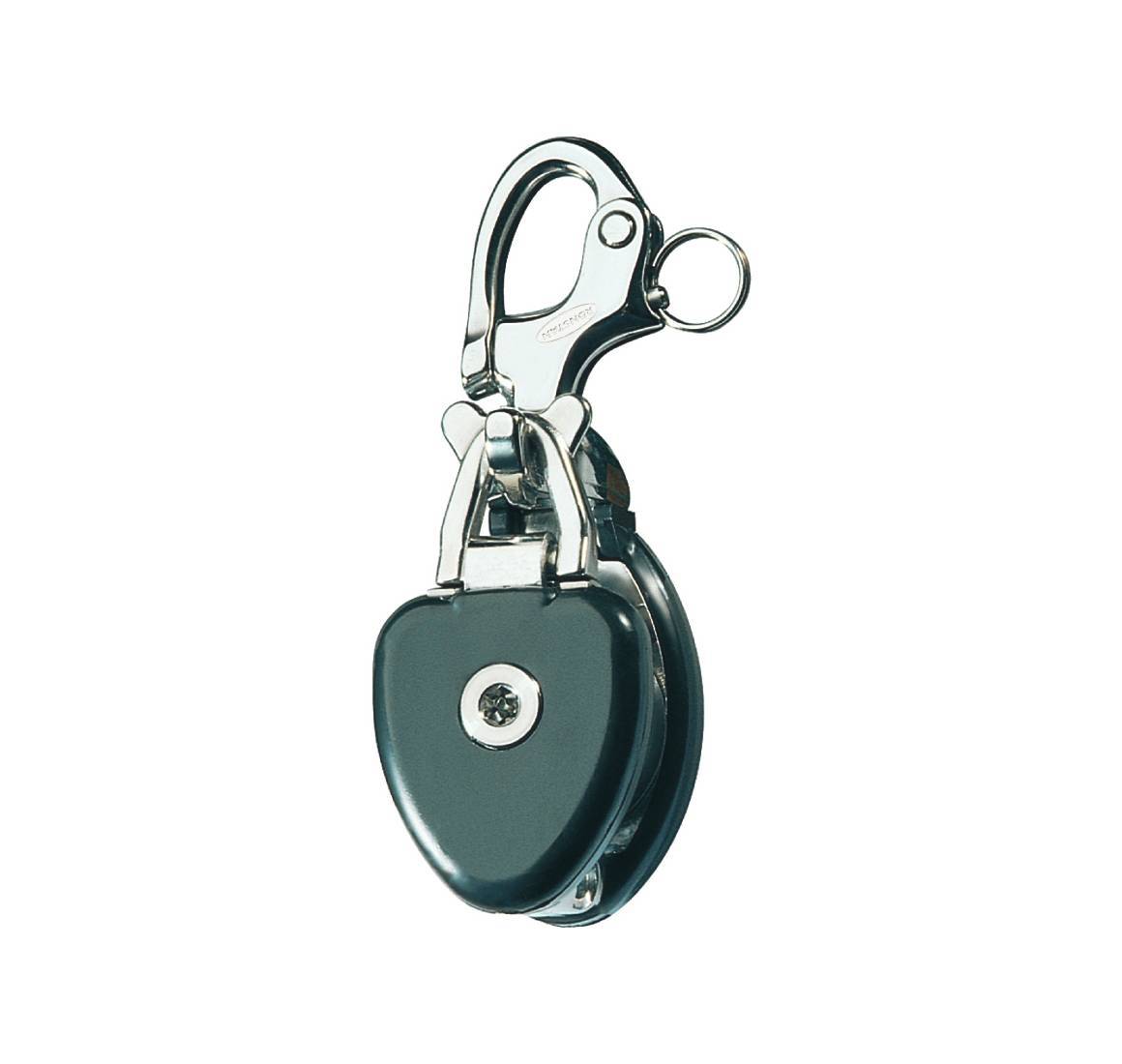

Ronstan Single Snatch Block
Features
Easily operated latch mechanism
Lightweight
Soft resilient cheeks
Sheave Ø - 1 3/4 in.
Max. Rope Ø - 5/8 in.
Max. Cable Ø - in
Pin Ø - in.
M.W.L. - 3530 lb.
B. L.- -7050 lb.
Weight - 19.4 oz.
Product Information
Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.
Applications
Removable spinnaker sheet deflector blocks for boats up to 11m (36ft)
Temporary sheeting point while changing sheets for boats up to 11m (36ft)
Temporary reefing block for boats up to 11m (36ft)
Spare or replacement block for general use on larger boats depending on line angle and load
Temporary outboard sheet lead for head sail trimming
Materials
Grade 316 stainless steel frame and load strap
Hard cote anodized alloy sheave
Soft PVC cheeks
Investment cast Grade 15-5PH stainless steel snap shackle
