Product Description

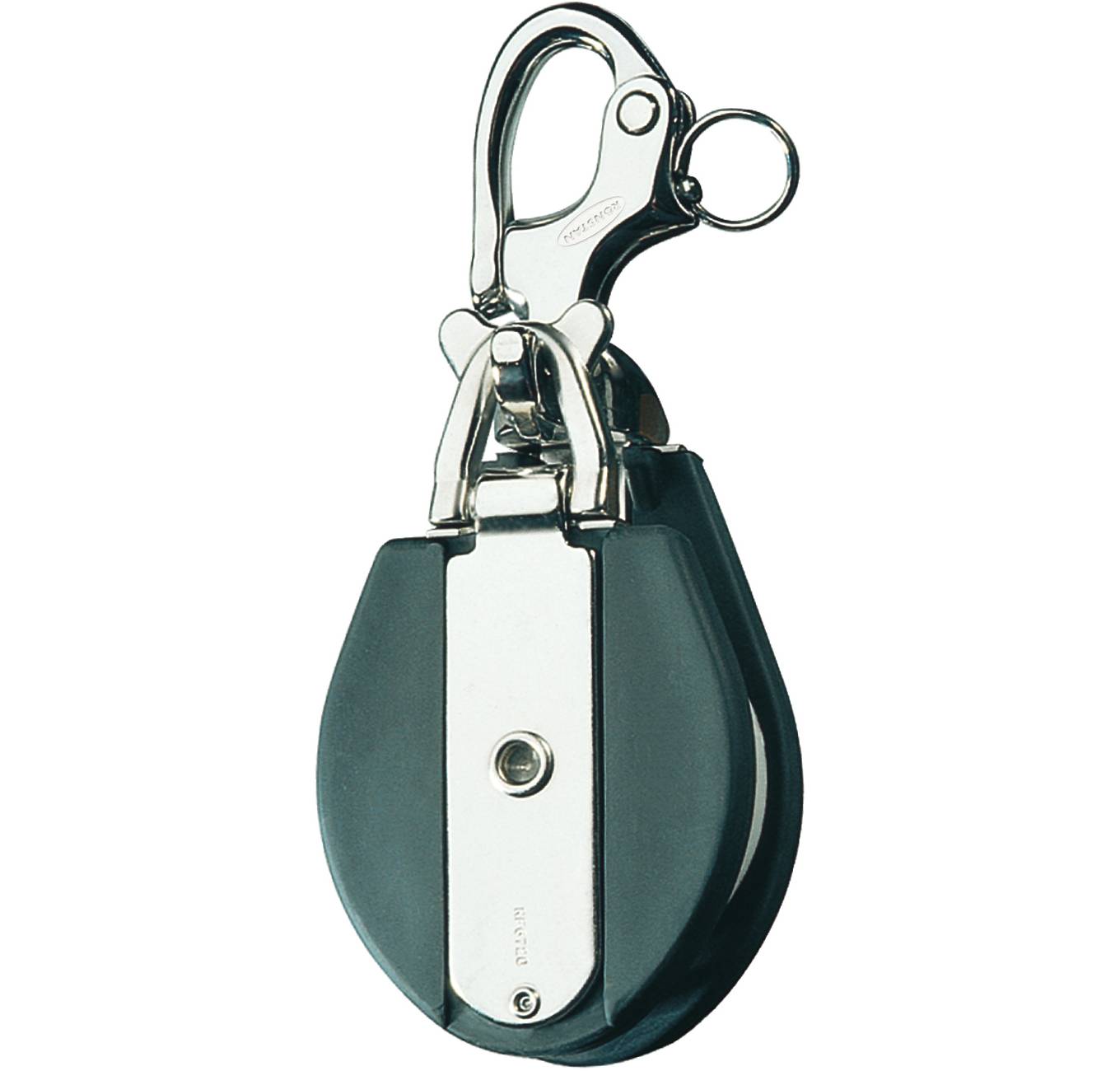

Ronstan Single Snatch Block w/ Acetal Sheave
Features
Easily operated latch mechanism
Lightweight
Soft resilient cheeks
Sheave Ø - 2 1/2 in.
Max. Rope Ø - 1/2 in.
Max. Cable Ø - in
Pin Ø - in.
M.W.L. - 2200 lb.
B. L. - 4410 lb.
Weight - 16.9 oz.
Product Information
Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.
Applications
Temporary sheeting point while changing sheets for boats up to 10m (33ft)
Temporary reefing block for boats up to 10m (33ft)
Spare or replacement block for general use on larger boats depending on line angle and load
Materials
U.V. stabilized Acetal sheaves
Grade 316 stainless steel frame and load strap
Soft thermoplastic rubber cheeks
Investment cast Grade 15-5PH stainless steel snap shackle
