Product Description

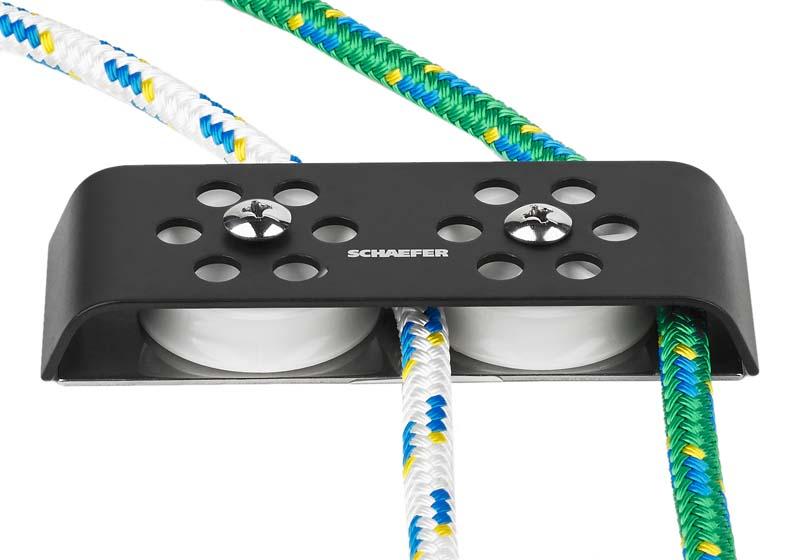

Schaefer 5 Series Double Aluminum Organizer
Double deck organizer. Aluminum top strap, Stainless steel base, Delrin (tm) Sheave. Safe Working Load 1950 lbs. Boats to 32'. Aluminum Sheave available - order #62-023-15cw.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Max Line: 7/16 in. (11 mm)
Width: 2 in. (51 mm)
Length: 5 3/4 in. (146 mm)
Height: 13/16 in. (20 mm)
Fasteners: (2) 1/4 in. RH (6 mm)
C/C: 2 1/4 in. (57 mm)
SWL: 1950 lbs. (885 kg)
Weight stain 11.8 oz (334 g)
Weight Alum - 9.5 oz (269 g)
