Schaefer Series 5 Triple Aluminum Organizer

Item #

504-81

Usually ships within 1-3 days

Product Description

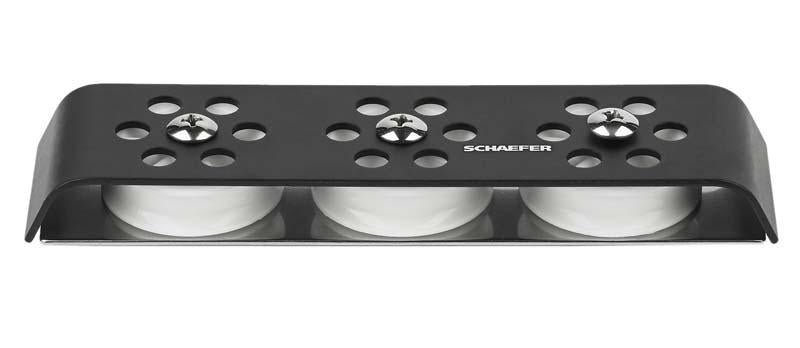

Schaefer Series 5 Triple Aluminum Organizer

5 Series Triple Aluminum deck organizer. Stainless Steel base and anodized aluminum top strap provide a high strength base. Delrin(tm) sheaves ensure smooth operation and high strength.. Boats to 32'. Aluminum sheave available, order #62-023-15cw as a direct replacement for Delrin sheaves.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line: 7/16 in. (11 mm)

  • Width: 2 in. (51 mm)

  • Length: 7 31/32 in. (202 mm)

  • Height: 13/16 in. (20 mm)

  • Fasteners: (3) 1/4 in. RH (6 mm)

  • C/C: 2 1/4 in. (57 mm)

  • SWL: 1950 lbs (885 kg)

  • Weight Alum.: 13.4 oz (380 g)
