Tylaska 10.63" T50 Standard Bail Snap Shackle

Item #

TY1050-S

Usually ships within 1-3 days

Product Description

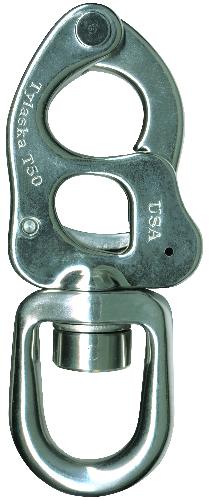

Tylaska 10.63" T50 Standard Bail Snap Shackle

Tylaska T50 Snap Shackles are the largest trigger-type snap shackle ever made. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation - ideal for towing applications. The locking pin provides extra security from accidental release.

Specifications:

Shackle Type: T50 Standard Bail

Safe Working Load (lb.): 25,000 (11,340kg)

Breaking Strength (lb.): 50,000 (22,680kg)

Boat Size (ft.): 100'+

Weight (lb.): 7.05lbs (3.20kg)

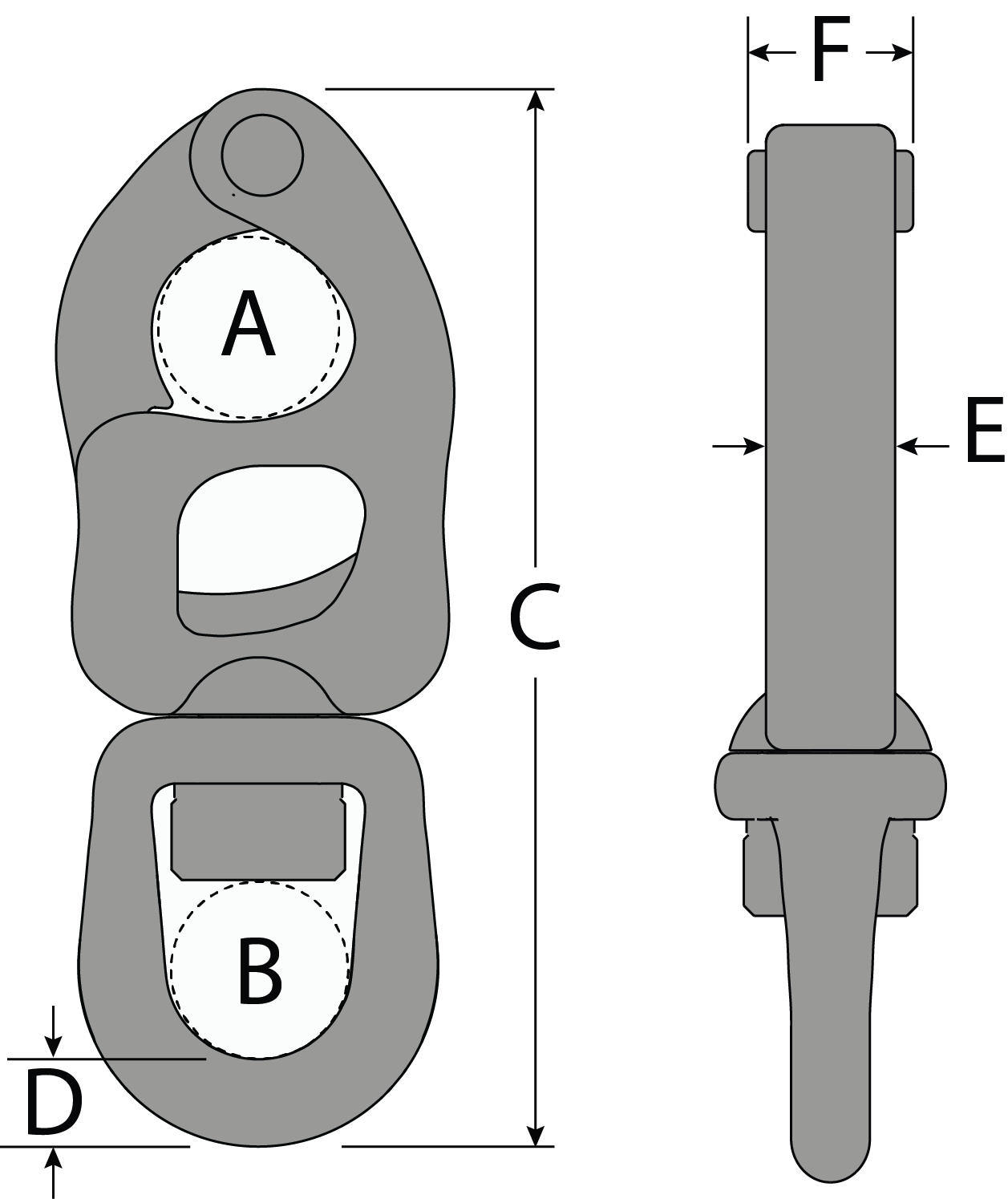

Dimensions:

A (in.): 1.95" (49.5mm)

B (in.): 2.00" (50.8mm)

C (in.): 11.58" (294.1mm)

D (in.): 0.83" (21.1mm)

E (in.): 1.25" (31.8mm)

F (in.): 1.55" (39.4mm)
