Tylaska 6 3/8" T30 Standard Bail Snap Shackle

Item #

TY1030-S

Usually ships within 1-3 days

Product Description

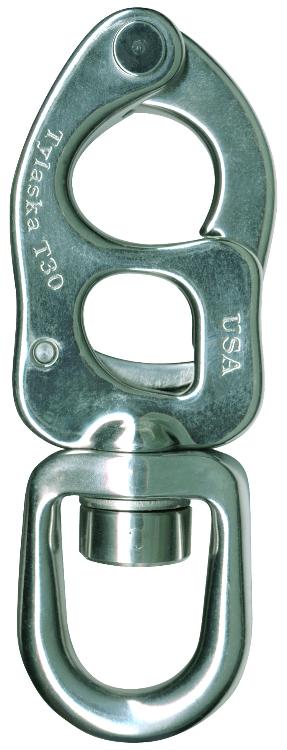

Tylaska 6 3/8" T30 Standard Bail Snap Shackle

Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.

Specifications

  • Safe Working Load(lb.) - 15,000 (6,800kg)

  • Breaking Strength(lb.) - 30,000 (13,610kg)

  • Boat Size(ft.) - 60'+

  • Weight(oz.) - 26.8 (760g)

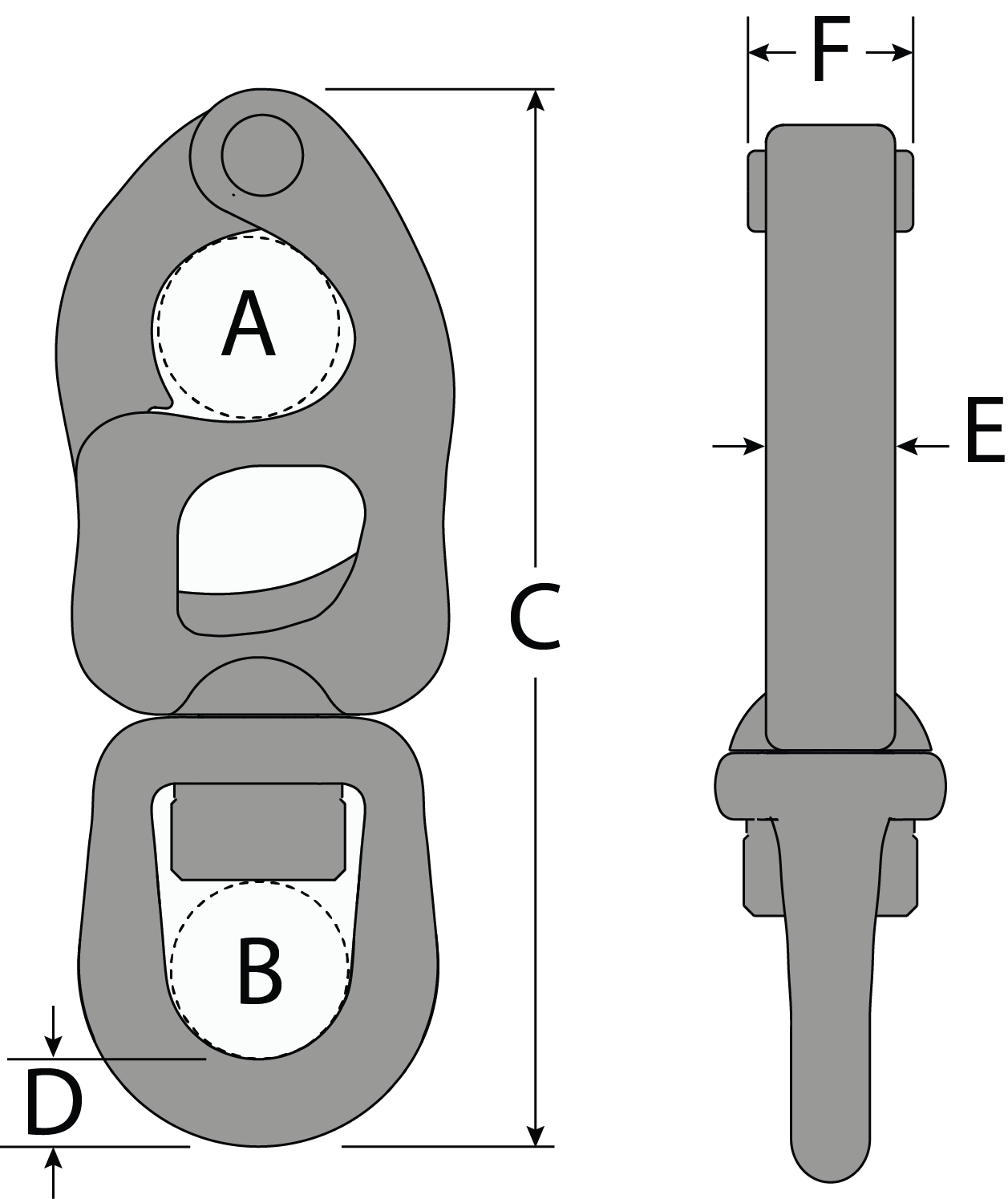

    Dimensions

  • A(in.) - 1.23" (31.2mm)

  • B(in.) - 1.20" (30.5mm)

  • C(in.) - 6.55" (166.4mm)

  • D(in.) - 0.56" (14.2mm)

  • E(in.) - 0.77" (19.6mm)

  • F(in.) - 0.97" (24.7mm)
  •
