Product Description

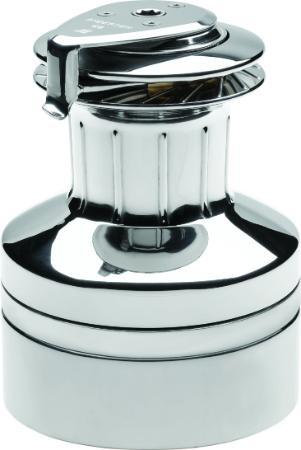

Andersen Electric Full Stainless Steel #68 Compact Variable Speed 12V Above Deck Winch
Features:
Highly efficient winch motor
Impressive line speed and first rate maximum load
Easy to install
Available in two versions: Above and Below deck
Winch mounted directly on the motor for deck
Available in Full Stainless or Non Stainless versions
Specifications:
Drum Ø D - 5 1/2 in. (140 mm)
Base Ø B - 11 in. (280 mm)
Height H - 10 3/4 in. (273 mm)
Line Entry L - 8 3/16 in. (208 mm)
Line Size - 3/8 - 11/16 in. (10 - 18 mm)
Weight - 112.4 lbs. (51 kg)
Max Deck Thickness K - 1 3/4 in. (45 mm)
Motor Height J - 3 7/16 in. (88 mm)
Motor Ø S - 11 1/8 in. (282 mm)
Motor Depth U - 1 9/16 - 2 15/16 in. (40 - 75 mm)
