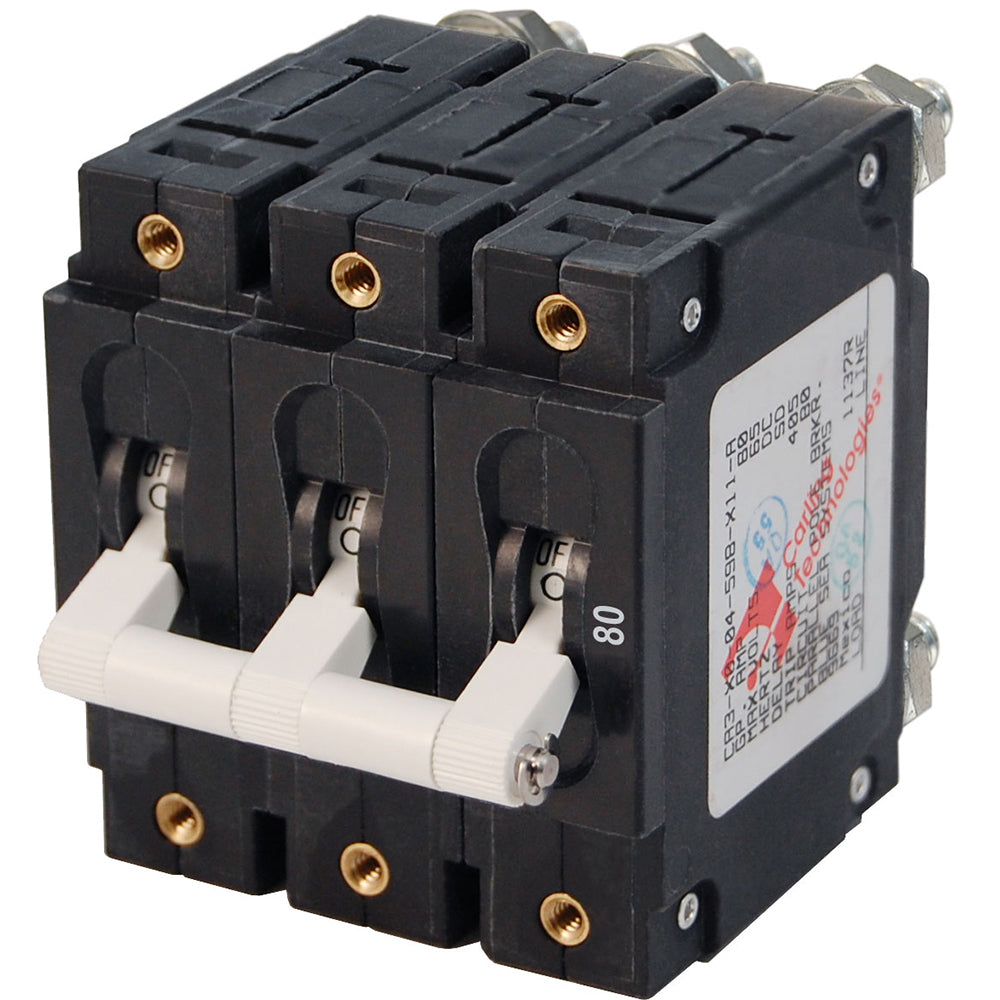

Blue Sea 7289 C-Series Triple Pole Circuit Breaker - 80A [7289]

C-Series Toggle

PN: 7289
Poles: 3
Color: White
Amperage: 80A

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection

• Double pole used as 120 volt AC main circuit breaker to switch hot to neutral

• Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral

• Double and triple pole circuit breakers will trip all poles will trip if any one pole trips

• "Trip Free" design cannot be held "ON" during fault current condition

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 80a
• Box Dimensions: 4"H x 5"W x 5"L WT: 0.95 lbs
• UPC: 632085072896
